C2G C2G30027 4K HDMI VGA USB Video Extender Transmitter / Receiver Set
C2G30027
|2D-C2G30027
Shop All C2G by Legrand
C2G C2G30027 4K HDMI VGA USB Video Extender Transmitter / Receiver Set
C2G30027 | 2D-C2G30027
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4k 60hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

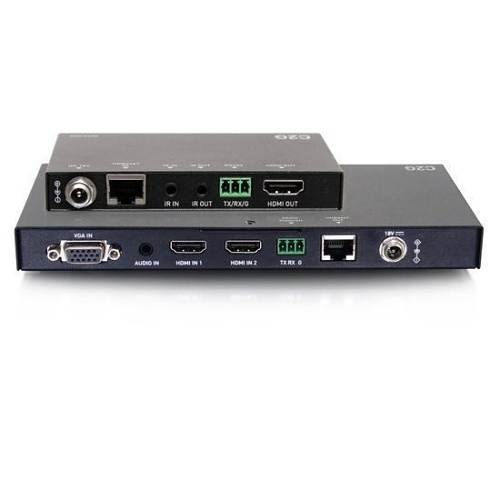

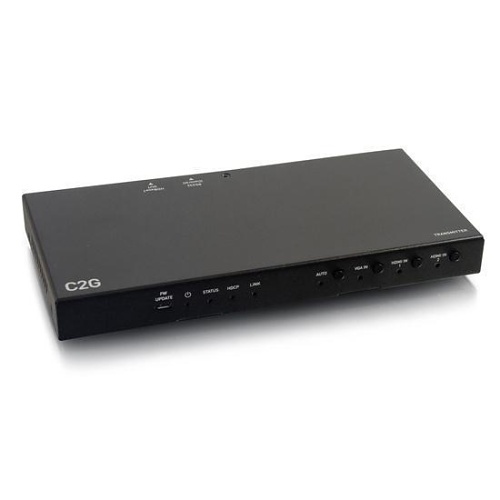

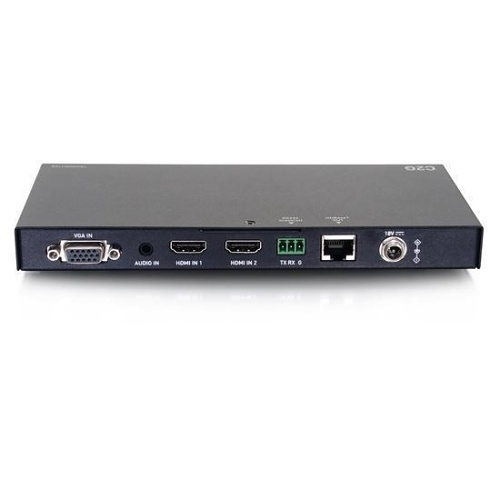

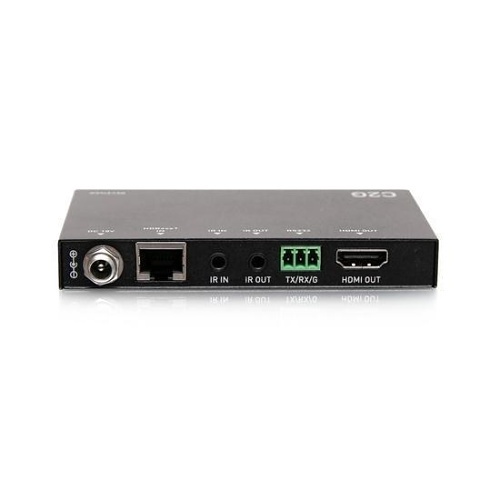

This wall plate transmitter and box receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT set is HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.
Main Features
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
General Information
Name: C2G C2G30027 4K HDMI VGA USB Video Extender Transmitter / Receiver Set
Category: C2G by Legrand, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
UPC Code: 757120300274
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 2D-C2G30027 Brand Name C2G by Legrand Country of Origin CN Manufacturer Part Number C2G30027
Connector on Second End RJ-45
Certifications NDAA 889, Prop 65, REACH, RoHS, TSCA TAA Compliant No
Color Black
Limited Warranty 5-Year
