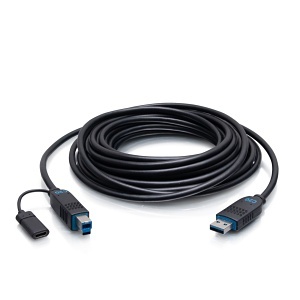

C2G C2G30088 Performance Series USB-A Male to USB-B Male Active Optical Cable, Plenum Rated, 75', Black
C2G30088
|2D-C2G30088
Shop All C2G by Legrand
C2G C2G30088 Performance Series USB-A Male to USB-B Male Active Optical Cable, Plenum Rated, 75', Black
C2G30088 | 2D-C2G30088
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
C2G Performance Series USB Active Optical Cables (AOC) are an innovatively designed solution for video conferencing and extending USB signals in corporate and educational spaces like meeting spaces, classrooms, and other commercial applications requiring USB data transfer speeds up to 10Gbps. The cable’s fiber strand construction reduces the risk of EMI/RFI, providing stable performance when used in high interference environme nts ensuring reliable data communication.
We have designed and engineered our USB AOCs with quality components to give a robust, durable design and fast data transfers, ideal for installation needs that are beyond the length limitations of standard, passive USB cabling. The cable jacket meets the fire code requirements for installation within plenum spaces, like a dropped ceiling.
USB AOCs can only run in one direction. This USB AOC cable features a unidirectional design which requires the cable to be installed in a specific direction. The USB-A connector is intended to connect to the source computer, while the USB-B connector is meant to connect to the device. Most USB devices can be powered by the connected source device and may not require external power. If additional power is needed, an integrated USB-C power pigtail is included on the USB-B end of the cable—ideal for high power commercial USB cameras and devices.
Main Features
- Supports all USB 3.2 Gen 2 features including data transfer speeds up to 10Gbps and power delivery up to 5W, far beyond passive USB length limitations
- Backward compatible with USB 3.1, 3.0 & 2.0, so it will work with various USB devices
- Plenum CMP rated jacket, so you can safely run the cable inside plenum spaces, meeting the requirements for an installation in a commercial space
- Integrated finger grips on the connectors for easy insertion and removal
General Information
Name: C2G C2G30088 Performance Series USB-A Male to USB-B Male Active Optical Cable, Plenum Rated, 75', Black
Category: C2G by Legrand, Pro AV, Commercial Connector Cables, Pro USB Cables
UPC Code: 757120300885
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 2D-C2G30088 Brand Name C2G by Legrand Connector Gender Male Manufacturer Part Number C2G30088 Product Series Performance
Connector on First End USB Type-A Connector on Second End USB Type-B, USB Type-C Jacket Material PVC
Data Transfer Rate 10 Gbps
Cable Length 75' Color Black
Length 75'
Certifications CE, FCC, REACH
