APC SUA5000R5TXFMR Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output

Brand: APC by Schneider Electric
ADI #:2G-5000R5TXF Model #: SUA5000R5TXFMR  Name: APC SUA5000R5TXFMR Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output
  • Experience higher efficiency with lower energy cost
  • Up to 9.40 minute runtime on full load to preserve critical data from power shortage interruptions
  • 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet

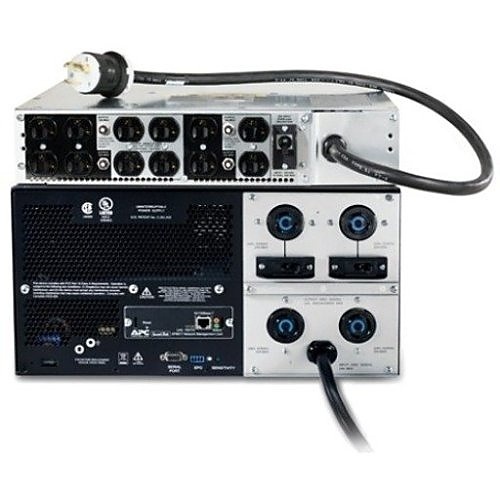

APC Smart-UPS 5000VA Rack-mountable UPS

Product Overview

APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output

General Information

Name : APC SUA5000R5TXFMR Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output , APC by Schneider Electric
Category : UPS
UPC Code : 731304733003
Country of Origin : Philippines. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : 2G-5000R5TXF
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : SUA5000R5TXFMR
Product Line : Smart-UPS
Product Name : Smart-UPS 5000VA Rack-mountable UPS
Product Type : Line-interactive UPS
Weight (Approximate) (g) : 145149.558

Technical Information

Backup/Run Time (Full Load) : 9.40 Minute
Backup/Run Time (Full Load) (Second) : 564
Backup/Run Time (Half Load) : 26.70 Minute
Backup/Run Time (Half Load) (Second) : 1602
Dataline Protection : RJ-45
Number of Battery & Surge Outlets : 15
Output Voltage : 120V AC, 208V AC
Output Voltage (V AC) : 120, 208
Receptacle Detail : 1 x NEMA L6-30R, 12 x NEMA 5-20R, 2 x NEMA L6-20R
Receptacle Type : NEMA 5-20R, NEMA L6-20R, NEMA L6-30R

Battery Information

Battery Characteristics : Spill-proof, Maintenance-free
Battery Chemistry : Lead Acid
Output Voltage (V DC) : 24
Typical Battery Recharge Time : 3 Hours
Typical Battery Recharge Time (Second) : 10800

Category Specific Attributes

Output Voltage (V) : 24
Surge Energy Rating (J) : 1020

Interfaces/Ports

Network (RJ-45) : Yes

Management

Network Management : SNMP Manageable

Physical Characteristics

Color : Black
Depth : 25"
Depth (mm) : 635
Form Factor : Rack Mount
Height : 12.3"
Height (mm) : 311.15
Rack Height : 7U
Weight (Approximate) : 320 lb
Width : 19"
Width (mm) : 482.6

Power Description

Input Voltage : 110V AC, 220V AC
Input Voltage (V AC) : 110, 220
Plug/Connector Type : NEMA L6-30P
Surge Energy Rating : 1020 J
Waveform Type : Sine Wave

Product Information

Load Capacity (VA) (W) : 4000W, 5000VA
Load Capacity (W) : 5000.000

Software

Software Included : PowerChute Management Software

Warranty

Limited Warranty : 2-Year

Miscellaneous

Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <li>Smart-UPS 5000VA Rack-mountable UPS </li><li>CD with software</li><li>Rack mounting support rails</li><li>Smart UPS signalling RS-232 cable</li><li>User manual</li>
