APC APDU9959NA3 Power Strip

Brand: APC by Schneider Electric
ADI #:2G-APDU9959N Model #: APDU9959NA3  Name: APC APDU9959NA3 Power Strip
  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • IEC 60320 C19/C21 receptacle type to ensure maximum productivity with added feasibility
  • IEC 60320 L6-20P plug/connector type for reliable, productive connectivity and optimal power output

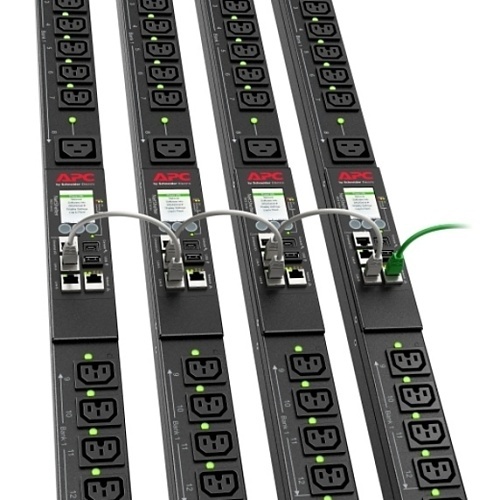

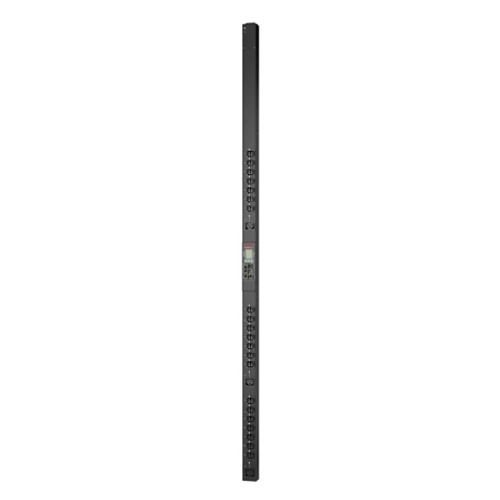

Image of 2G-APDU9959N

Product Overview

With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.

With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.

General Information

Name : APC APDU9959NA3 Power Strip , APC by Schneider Electric
Category : Power Distribution Units
UPC Code : 731304356301

Specifications

General Information

ADI Part Number : 2G-APDU9959N
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : APDU9959NA3
Product Line : NetShelter
Product Name : Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord
Product Series : 9000
Product Type : PDU
Weight (Approximate) (g) : 5610.938

Technical Information

Output Voltage : 208V AC
PDU Type : Switched
Power Rating (Watt) : 17.30 kW
Power Rating (Watt) (W) : 17300
Receptacle Detail : 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21
Receptacle Type : IEC 60320 C13/C15, IEC 60320 C19/C21

Interfaces/Ports

Network (RJ-45) : Yes

Management

Management : <ul> <li>Web</li> <li>SNMP</li> <li>Telnet</li> </ul>

Physical Characteristics

Depth : 1.8"
Depth (mm) : 46
Form Factor : Tower
Height : 70.7"
Height (mm) : 1797
Rack Height : 0U
Weight (Approximate) : 12.37 lb
Width : 2.2"
Width (mm) : 55

Power Description

Input Current : 20 A
Input Current (A) : 20
Input Voltage : 208V
Plug/Connector Type : NEMA L6-20P
Power Rating (VA) : 3300 VA
Power Rating (VA) (W) : 3300

Product Information

Mount Type : Rack Mount
Protection Type : Accidental Power Shutdown, Circuit Protection

Warranty

Limited Warranty : 3 Year

Miscellaneous

Environmental Certification : REACH
Environmentally Friendly : Yes
Package Contents : <li>Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord </li><li>Installation guide</li><li>Rack mounting brackets</li><li>Safety guide</li>
