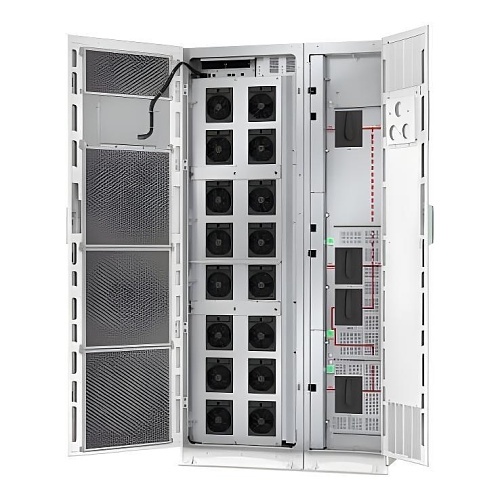

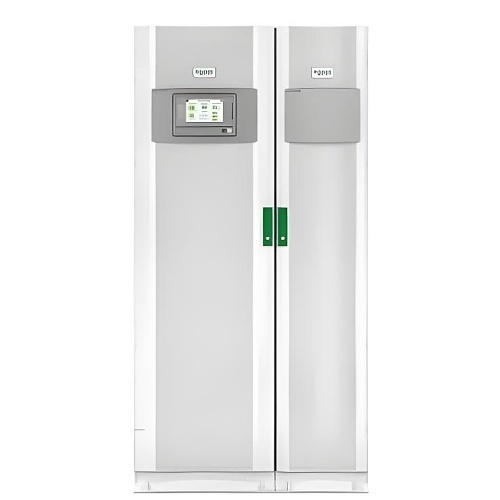

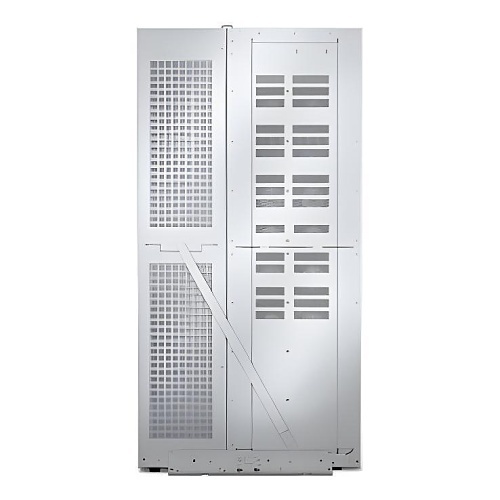

APC GVMSB200KHS Galaxy VM 200 KVA UPS Single, 400-400V
GVMSB200KHS
|2G-MSB200KHS
Shop all APC by Schneider Electric
APC GVMSB200KHS Galaxy VM 200 KVA UPS Single, 400-400V
GVMSB200KHS | 2G-MSB200KHS
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Highly compact, energy efficient 3-phase UPS for data center, facility and industrial applications. to be used with external battery cabinets.
Main Features
- 200 kVA power capacity
- Highly compact design
- Energy efficient operation
- 3-phase UPS system
- Suitable for data centers
- Ideal for facility use
- Compatible with industrial applications
- Requires external battery cabinets
General Information
Name: APC GVMSB200KHS Galaxy VM 200 KVA UPS Single, 400-400V
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-MSB200KHS Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number GVMSB200KHS Packaged Quantity 1 Product Line Galaxy VM Product Name Galaxy VM 200kVA Tower UPS Product Type Double Conversion Online UPS Sector Intrusion
Application/Usage Data Center, Industrial Output Voltage 380V AC, 400V AC, 415V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire (3P + E), 1 x Hard Wire 5-wire (3P + N + E) Receptacle Type Hard Wire 4-wire (3P + E), Hard Wire 5-wire (3P + N + E)
DC System Voltage 480 Replaceable Battery Yes
Maximum Operating Elevation 3333' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 49212.01' Maximum Storage Temperature 131°F Minimum Storage Temperature -13°F Thermal Dissipation 7200.76W
EPO Port Yes Serial Port Yes
Color White Depth 33.6" Form Factor Tower Height 77.6" Package Type Pack Weight 1596.15lb Width 41.4"
Input Frequency 70Hz Input Voltage 230V AC, 380V AC, 400V AC, 415V AC Output Frequency 60Hz Waveform Type Sine Wave
Limited Warranty 1-Year
Environmental Certification UL Environmentally Friendly Yes
