Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 700VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
General Information

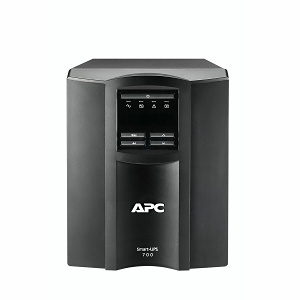

Name : APC SMT700X167 LCD Line Interactive AVR Smart-UPS with 8x NEMA 5-15R Outlets, SmartSlot and Auto Sense Voltage 120V/230V , APC by Schneider Electric
Category : UPS
UPC Code :
Specifications
General Information
ADI Part Number : 2G-MT700X167
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : SMT700X167
Product Line : Smart-UPS
Product Name : Smart-UPS 700VA Tower UPS
Product Type : Line-interactive UPS
Weight (Approximate) (g) : 12501.006
Technical Information
AVR : Yes
EMI/RFI Noise Filter : Yes
Load Capacity (VA) : 700 VA
Number of Battery & Surge Outlets : 8
Output Voltage : 120V AC
Receptacle Detail : 8 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Transfer Time : 10 ms
Transfer Time (Second) : 0.01
USB (HID Compliant) Port : Yes
Battery Information
Battery Chemistry : Lead Acid
Battery Life : 5 Year
Battery Life (Second) : 157784630
Replaceable Battery : Yes
Typical Battery Recharge Time : 3 hrs
Typical Battery Recharge Time (Second) : 10800
Category Specific Attributes
Surge Energy Rating (J) : 540
Controls/Indicators
Status Indicators : <p><b>LED Display:<br /></b></p> <ul> <li>Load bar-graphs</li> <li>Battery bar-graphs</li> <li>On Line</li> <li>On Battery</li> <li>Replace Battery</li> <li>Overload Indicator</li> </ul> <p></p>
Environmental Conditions
Maximum Operating Temperature : 104°F (40°C)
Maximum Operating Temperature (°F) : 104
Thermal Dissipation : 26.38 W
Thermal Dissipation (W) : 26.376
Interfaces/Ports
Serial Port : Yes
Management
Alarm : Alarm
Physical Characteristics
Application/Usage : Critical System, IT, Network, Server
Depth : 14.5"
Depth (mm) : 369
Form Factor : Tower
Height : 6.3"
Height (mm) : 161
Weight (Approximate) : 27.56 lb
Width : 5.4"
Width (mm) : 138
Power Description
Input Frequency : 60 Hz
Input Frequency (Hz) : 60.000
Input Voltage : 120V AC
Output Frequency : 60 Hz
Plug/Connector Type : NEMA 5-15P
Surge Energy Rating : 540 J
Waveform Type : Sine Wave
Product Information
Load Capacity (VA) (W) : 700.000
Load Capacity (W) : 700.000
Warranty
Limited Warranty : 3 Year
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>Smart-UPS 700VA Tower UPS</li> <li>User Manual</li> </ul>
TAA Compliant : Yes
