APC by Schneider Electric

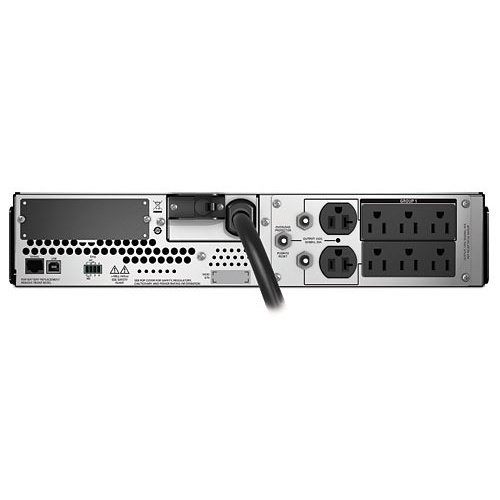

APC SMT3000RM2U 3000VA Smart-UPS, Line Interactive, Rackmount, 2U, 120V

SMT3000RM2U

2G-SMT3000RM

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Shop All APC by Schneider Electric

APC SMT3000RM2U 3000VA Smart-UPS, Line Interactive, Rackmount, 2U, 120V

SMT3000RM2U | 2G-SMT3000RM

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Marketing Information from the Manufacturer

Main Features

Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Audible alarms - Provides notification of changing utility power and UPS power conditions
Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Disconnected battery notification - Warns when a battery is not available to provide backup power.
Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

General Information

Name: APC SMT3000RM2U 3000VA Smart-UPS, Line Interactive, Rackmount, 2U, 120V

Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS

UPC Code: 731304279549

Country of Origin: Philippines. Country of origin is subject to change.

Specifications

: ADI Part Number 2G-SMT3000RM Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SMT3000RM2U Product Line Smart-UPS Product Model SMT3000RM2U Product Name Smart-UPS SMT3000RM2U 3000VA Rack-mountable UPS Product Type Line-interactive UPS

: Backup/Run Time (Full Load) 3-Minute Backup/Run Time (Half Load) 12-Minute Hot Swappable Yes Number of Battery & Surge Outlets 8 Output Voltage 120V AC Receptacle Detail 2 x NEMA 5-20R, 6 x NEMA 5-15R Receptacle Type NEMA 5-15R, NEMA 5-20R

: Battery Characteristics Maintenance-free, Sealed, Spill-proof Battery Chemistry Lead Acid Battery Recharge Time 3-Hour Maximum Storage Relative Humidity 0.95

: Energy Star Yes

: Serial Port Yes

: Color Green Depth 26.9" Form Factor Rack Mount Height 3.4" Rack Height 2U Weight 97.42lb Width 18.9"

: Input Voltage 120V AC Plug/Connector Type NEMA L5-30P Waveform Type Sine Wave

: Mount Type Rack Mount

: Limited Warranty 3-Year

: Country of Origin PH Environmentally Friendly Yes Package Contents
Smart-UPS SMT3000RM2U 3000VA Rack-mountable UPS
CD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting support rails
and more below
, Smart UPS signalling RS-232 cable, USB cable

Documents and Resources

Download All Documents

User Manual
