Product Overview
This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity The 1000VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
More from the Manufacturer
General Information
Name : APC SMT1000RM1U Smart-UPS Line Interactive Uninterruptible Power Supply with LCD Display, 4-NEMA 5-15R Outlets, 1000 VA, 1U, 120V , APC by Schneider Electric
Category : UPS
UPC Code :
Specifications
General Information
ADI Part Number : 2G-T1000RM1U
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : SMT1000RM1U
Packaged Quantity : 1
Product Line : Smart-UPS
Product Name : Smart-UPS SMT 1000VA Rack-mountable UPS
Product Series : SMT
Product Type : Line-interactive UPS
Weight (Approximate) (g) : 15798.622
Technical Information
AVR : Yes
Backup/Run Time (Full Load) : 1.55 Minute
Backup/Run Time (Full Load) (Second) : 93
Backup/Run Time (Half Load) : 9.45 Minute
Backup/Run Time (Half Load) (Second) : 567
Load Capacity (VA) : 1000 VA
Output Voltage : 120V AC
Receptacle Detail : 4 x NEMA 5-15R
Receptacle Type : NEMA 5-15P
Transfer Time : 8 ms
Transfer Time (Second) : 0.008
Battery Information
Battery Chemistry : Lead Acid
Battery Life : 5 Year
Battery Life (Second) : 157784630
Replaceable Battery : Yes
Typical Battery Recharge Time : 5 hrs
Typical Battery Recharge Time (Second) : 18000
Category Specific Attributes
Surge Energy Rating (J) : 540
Environmental Conditions
Maximum Operating Elevation : 10000 ft
Maximum Operating Elevation (mm) : 3048000
Maximum Operating Temperature : 104°F (40°C)
Maximum Operating Temperature (°F) : 104
Maximum Storage Elevation : 50000 ft
Maximum Storage Elevation (mm) : 15240000
Thermal Dissipation : 25.79 W
Thermal Dissipation (W) : 25.79
Management
Alarm : Configurable Delay, Low Battery, On Battery
Physical Characteristics
Application/Usage : Business, Hyperconverged Infrastructure (HCI), Server, Virtual Machine

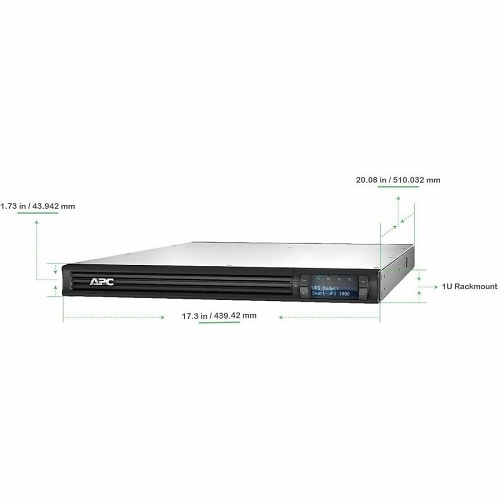

Depth : 19.8"
Depth (mm) : 502.000
Form Factor : Rack Mount
Height : 1.7"
Height (mm) : 44.000
Rack Height : 1U
Weight (Approximate) : 34.83 lb
Width : 17"
Width (mm) : 432.000
Power Description
Input Frequency : 60 Hz
Input Frequency (Hz) : 60.000
Input Voltage : 120V AC
Output Frequency : 60 Hz
Plug/Connector Type : NEMA 5-15P
Surge Energy Rating : 540 J
Waveform Type : Sine Wave
Product Information
Load Capacity (VA) (W) : 1000.000
Warranty
Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
Limited Warranty : 3 Year
Miscellaneous
Environmentally Friendly : Yes
Package Contents : <ul><li> Smart-UPS SMT 1000VA Rack-mountable UPS</li><li> User Manual</li></ul>
