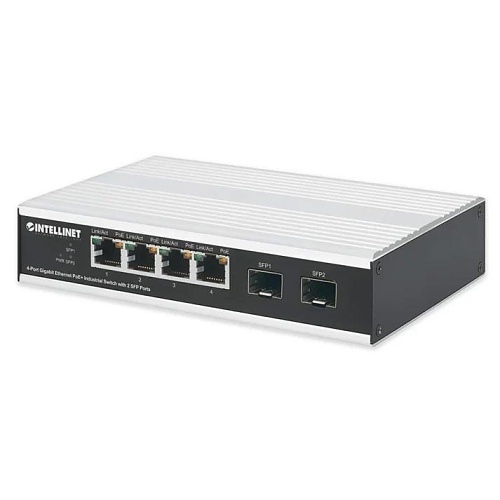

Intellinet 508254 4-Port Gigabit Ethernet PoE+ Industrial Switch with 2-Port SFP, PoE Power Budget 120W, Endspan, DIN-Rail Mount, IP40, Metal Housing
508254
|42-508254
Shop All Intellinet
Intellinet 508254 4-Port Gigabit Ethernet PoE+ Industrial Switch with 2-Port SFP, PoE Power Budget 120W, Endspan, DIN-Rail Mount, IP40, Metal Housing
508254 | 42-508254
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
4-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports - high-power PoE+ connectivity for harsh industrial environments. The 4-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports from Intellinet Network Solutions was designed to give you the network connections and device power you need in places that are less than calm or temperate. With a rugged, IP40-rated metal case it operates reliably and quietly, even in extreme temperatures that range from -40 to 167 degreesF (-40 75℃). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with power failure alarm and plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more. Gigabit Speeds paired with a large Power Budget. Featuring four auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this unmanaged switch offers plenty of performance for the devices in your network. The switch features a power budget of 120 W and can distribute a full 30 W (per the IEEE 802.3at standard) to every RJ45 port simultaneously. Also, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances.
Main Features
- Provides power and data connections for up to four PoE network devices
- Save installation cost by delivering data and power over existing network cables
- IP40 slim-type metal housing to withstand harsh industrial conditions
- Wide operating temperature: -40 – 75℃ (-40 – 167°F)
- Option for DIN-rail installation
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Two small form-factor pluggable GBIC module slots (SFP)
- Power output up to 30 watts per port
- PoE power budget of 120 watts (depending on the power supply used)
General Information
Name: Intellinet 508254 4-Port Gigabit Ethernet PoE+ Industrial Switch with 2-Port SFP, PoE Power Budget 120W, Endspan, DIN-Rail Mount, IP40, Metal Housing
Category: Intellinet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 766623508254
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 42-508254 Brand Name Intellinet Manufacturer Part Number 508254 Product Name Industrial 4-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports Product Type Switch
Power Consumption 135.0000W
Network Technology 1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-T, 10Base-T
Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Height 1.38" Material Metal Weight 1.52lb Width 3.98"
Input Voltage 44-57V
Length 6.38"
Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents 4-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports, DIN-rail mount bracket
