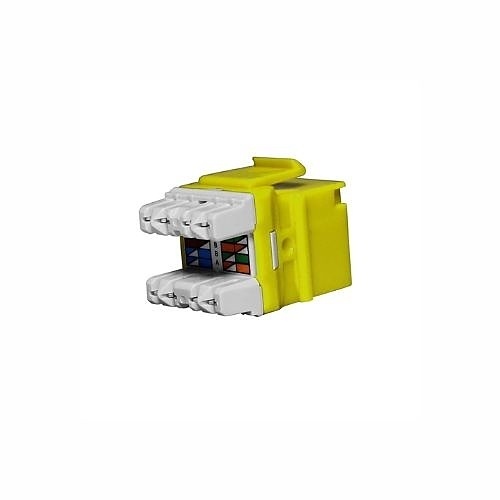

Signamax KJ458MT-C6C-YE MT-Series HD Keystone Jack, CAT6, Yellow
KJ458MT-C6C-YE
|47-KJ458MT14
Shop all Signamax
Signamax KJ458MT-C6C-YE MT-Series HD Keystone Jack, CAT6, Yellow
KJ458MT-C6C-YE | 47-KJ458MT14
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6A unscreened high-density keystone jacks have been designed to meet the need for today's high-bandwidth applications. Category 6A connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 6A requirements. Jacks support both T568A and T568B wiring schemes for maximum flexibility using an easy-to-read color-code wiring label. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool. The connec-tors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability.
Main Features
- Guaranteed to meet or exceed TIA-568-C.2 component performance
- Rated for at least 750 plug insertions providing for the highest level of system reliability
- Supports TIA-568-C.2 category 6A 100-meter channel performance
- Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
- Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port
- T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility
- 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels
- Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other contaminants
- Rear 110 type contacts provide improved wire retention and ease of termination
- Terminated with standard single-position 110 or Signamax four-pair termination tools
General Information
Name: Signamax KJ458MT-C6C-YE MT-Series HD Keystone Jack, CAT6, Yellow
Category: Signamax, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code: 763474166794
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 47-KJ458MT14 Brand Name Signamax Manufacturer Part Number KJ458MT-C6C-YE Package Length 1.18 Product Type Network Connector
Cable Type Category 6 Contact Plating Gold, Nickel, Phosphor Bronze
Connector Type RJ45 Number of Contacts 10
Color Yellow
Features Dust Protection, Fire Retardant
