Potter ERCES 3996176 RF Tapper, 137-960 MHz, 30 dBm

TQ-TAP-137-960-30

|

5V-3996176

Sign In for Dealer Pricing

New to ADI?Become a Customer

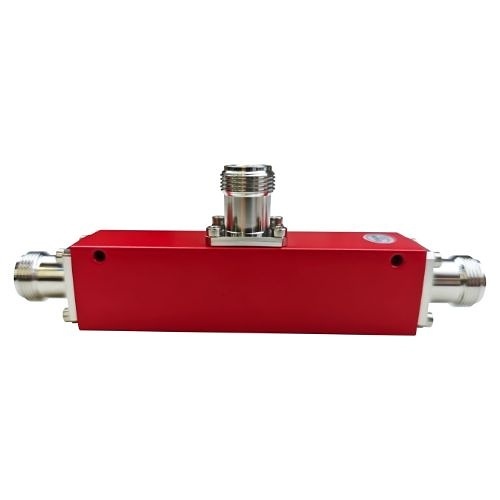

Image of 5V-3996176
Shop all Potter ERCES

Potter ERCES 3996176 RF Tapper, 137-960 MHz, 30 dBm

TQ-TAP-137-960-30 | 5V-3996176

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

The TQ-TAP series of RF Power Tappers is designed to accommodate all Public Safety Bands. These Power Tappers play a crucial role in distributing and balancing RF power across a distributed antenna system. By attenuating the power more on the coupled port in comparison to the through port, Tappers facilitate an even distribution of power. This characteristic ensures that antennas located farther away from the signal booster receive approximately the same power as antennas in closer proximity, promoting uniform coverage throughout the system.

Main Features

  • Supports all Public Safety Bands
  • Low Insertion Loss
  • Low VSWR
  • Up to 200W Average Power
  • High Reliability, IP65

General Information

Name: Potter ERCES 3996176 RF Tapper, 137-960 MHz, 30 dBm
Category: Fire, Fire Accessories, Bi-Directional Amplifiers & Accessories
UPC Code:
Country of Origin: . Country of origin is subject to change.
