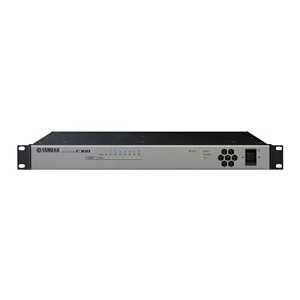

Image of 60-EXI8
Shop all Yamaha

Yamaha EXI8 Input Expander for MTX/MRX Series Processors

EXI8|60-EXI8
Shop all Yamaha

Yamaha EXI8 Input Expander for MTX/MRX Series Processors

EXI8|60-EXI8
Key Features
  • Maximum number of simultaneously usable devices; a total of seven EXi8 and EXo8 devices; (however in a system, a total of up to 20 devices, including devices such as the MTX series and XMV series, can be used)
  • Power cord length; 8.2'
  • Sampling frequency, 48 kHz / 44.1 kHz
Key Features
  • Maximum number of simultaneously usable devices; a total of seven EXi8 and EXo8 devices; (however in a system, a total of up to 20 devices, including devices such as the MTX series and XMV series, can be used)
  • Power cord length; 8.2'
  • Sampling frequency, 48 kHz / 44.1 kHz

Sign In for Dealer Pricing

Become an ADI Customer
ADI Pro
Key Features
  • Maximum number of simultaneously usable devices; a total of seven EXi8 and EXo8 devices; (however in a system, a total of up to 20 devices, including devices such as the MTX series and XMV series, can be used)
  • Power cord length; 8.2'
  • Sampling frequency, 48 kHz / 44.1 kHz
Yamaha

Yamaha EXI8 Input Expander for MTX/MRX Series Processors

EXI8 | 60-EXI8

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Yamaha EXi8 input expanders convert analog microphone/line audio to digital and transmits the signal using Yamaha's YDIF format. The EXi8's preamps can be controlled remotely from an MTX processor via Ethernet cable.

Main Features

  • Maximum number of simultaneously usable devices; a total of seven EXi8 and EXo8 devices; (however in a system, a total of up to 20 devices, including devices such as the MTX series and XMV series, can be used)
  • Power cord length; 8.2'
  • Sampling frequency, 48 kHz / 44.1 kHz
  • Signal delay; less than 2.5ms
  • Frequency response; 20Hz to 20kHz, -1.5dB min, 0dB typ., +0.5dB max
  • Total harmonic distortion; less than 0.05% (+4dBu, Gain -6dB); less than 0.1% (+4dBu, Gain +66dB)
  • Dynamic range; 107dB (Gain -6dB)
  • Equivalent input noise (EIN); -126dBu (Gain +66dB)
  • Crosstalk / Channel separation; -100dB (at 1 kHz)

General Information

Name: Yamaha EXI8 Input Expander for MTX/MRX Series Processors
Category: Yamaha, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code:
Country of Origin: Indonesia. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
