Product Overview

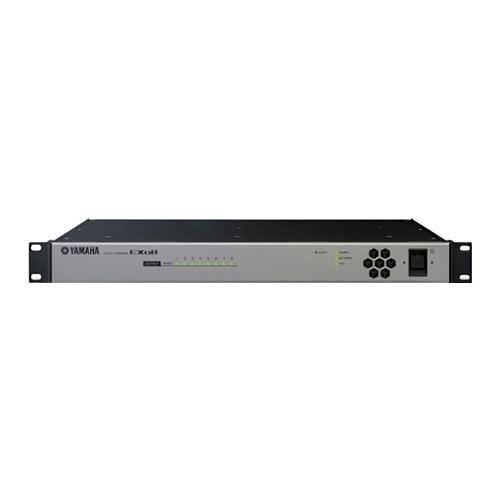

The Yamaha EXo8 output expanders feature 8 channels of DA converters that produce high quality analog audio by converting digital output from MTX Series processors via YDIF.
Main Features
- Maximum number of simultaneously usable devices; a total of seven EXi8 and EXo8 devices; (However in a system, a total of up to20 devices, including devices such as the MTX series and XMV series, can be used)
- Power cord length; 8.2'
- Sampling frequency; 48 kHz / 44.1 kHz
- Signal delay; less than 2.5ms
- Frequency response; 20Hz to 20kHz, -1.5dB min, 0dBtyp., +0.5dB max
- Total harmonic distortion; less than 0.05% (+4dBu,Gain:-6dB); less than 0.1% (+4dBu, Gain:+66dB)
- Dynamic range; 107dB (Gain -6dB)
- Equivalent input noise (EIN); -126dBu (Gain +66dB)
- Crosstalk / Channel separation; -100dB (at 1 kHz)
General Information
Name: Yamaha EXO8 Output Expander for MTX/MRX Series Processors
Category: Yamaha, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 86792973371
Country of Origin: Indonesia. Country of origin is subject to change.
Specifications
ADI Part Number 60-EXO8 Brand Name Yamaha Country of Origin ID Manufacturer Part Number EXO8 Product Type Expansion Card
Height 15.39" Weight 30.86lb Width 13.66"
Length 28.07"
