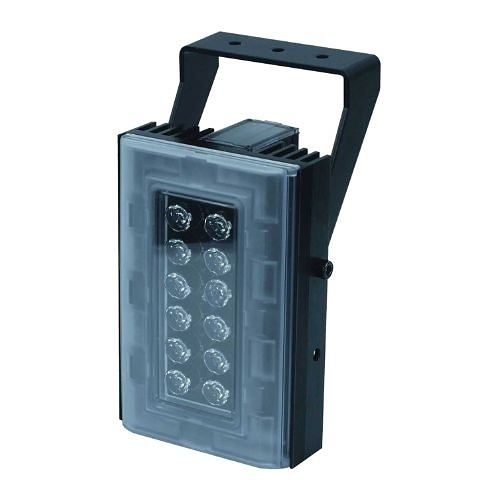

Digital Watchdog DW-ILHYBIP850 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator
DW-ILHYBIP850|6K-ILHYBIP85
Digital Watchdog DW-ILHYBIP850 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator
DW-ILHYBIP850|6K-ILHYBIP85
Key Features
- Hybrid Infrared and white light LED illuminator
- Interchangeable lens pack for a variety of angles out of the box
- Direct integration with DW Spectrum IPVMS
Key Features
- Hybrid Infrared and white light LED illuminator
- Interchangeable lens pack for a variety of angles out of the box
- Direct integration with DW Spectrum IPVMS
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Hybrid Infrared and white light LED illuminator
- Interchangeable lens pack for a variety of angles out of the box
- Direct integration with DW Spectrum IPVMS
Digital Watchdog
Digital Watchdog DW-ILHYBIP850 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator
DW-ILHYBIP850 | 6K-ILHYBIP85
Please sign in to view pricing and availability and to add to cart.
Accessories
PIR Motion Sensors
ADI # 6K-DTPIRIPW
MODEL # DW-DTPIRIPW
DW-DTPIRIPW|6K-DTPIRIPW
Sign In for Dealer Pricing
Housing & Mounting Accessories
ADI # 6K-ILWM3
MODEL # DW-ILWM3
DW-ILWM3|6K-ILWM3
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The DW-ILHYBIP850 and DW-ILHYBIP940 are IP-enabled infrared (IR) and white light (WL) LED outdoor illuminator. The hybrid illuminator incorporates the latest surface mount Dual-Core LEDs, combined with enhanced optical output and outstanding reliability to provide users with a smart concealed and deterrent lighting solution for a wide range of applications.
Main Features
- Hybrid Infrared and white light LED illuminator
- Interchangeable lens pack for a variety of angles out of the box
- Direct integration with DW Spectrum IPVMS
- Create different elliptical beam profiles
- Motion-activated
- CleanView hydrophobic coating repels water, dust and grease
- Activate white light to deter intruders
- Remotely adjustable photocell and illumination levels
- 850nm IR Wavelength (DW-ILHYBIP850)
- 940nm IR Wavelength (DW-ILHYBIP940)
General Information
Name: Digital Watchdog DW-ILHYBIP850 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator
Category: Digital Watchdog, Video Surveillance, Video Accessories, Illuminators
UPC Code: 812226033812
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number 6K-ILHYBIP85 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DW-ILHYBIP850 Product Line SiteWatch Product Name NightWatch IR/White Light Illuminator Product Type IR/White Light Illuminator Weight 3lb
-
Light Output 1800 lm Maximum Detection Range 98.5' Video Formats H.264, MJPEG
-
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
-
Operating Temperature (T-T) -58-122°F
-
Application/Usage Outdoor Color White Depth 3.1" Dimensions 4.33" x 6.34" x 3.07" Durability Impact Resistant Height 4.3" Width 6.3"
-
Limited Warranty 2-Year
-
Certifications CE, FCC, IEC/EN 60529, IEC/EN 62262 Country of Origin US Features Surface Mount, Wall Mountable Impact Protection Rating IK09
