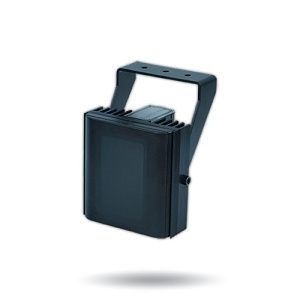

Digital Watchdog DW-ILIRIP940 940nm IR LED IP-Enabled PoE+ Illuminator

DW-ILIRIP940 | 6K-ILIRIP940

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

These NightWatch DW-ILIRIP850 and DW-ILIRIP940 are IP-enabled Infrared (IR) LED outdoor illuminators. The illuminators incorporate the latest surface mount Dual-Core LEDs, combined with enhanced optical output and outstanding reliability to provide users with smart lighting solutions for a wide range of applications.

Main Features

Discreet Surveillance 940nm wavelength delivers invisible IR illumination, ideal for covert monitoring without visible red glow.
Extended Coverage Covers up to 374 feet (115m), ensuring wide-area visibility for perimeter and outdoor security applications.
Customizable Beam Profiles Includes interchangeable lens packs to create elliptical beam angles from 10° to 95°, aligning perfectly with camera fields of view.
Smart Motion Activation Lights can be configured to activate only when motion is detected (with compatible sensors), optimizing energy use and responsiveness.
Web-Based Configuration Built-in web interface allows intuitive setup and remote management without additional software.
DW Spectrum Integration Seamlessly integrates with DW Spectrum for centralized control and event-driven illumination.
Durable Outdoor Design IP66-rated for dust and water resistance and IK09-rated for impact protection, built to withstand harsh environments.
High-Efficiency LEDs Equipped with advanced Dual-Core™ surface-mount LEDs for powerful, reliable infrared output.
Flexible Mounting Options Supports modular mounting brackets for single, dual, or triple illuminator setups, adapting to any installation layout.
Government-Ready Compliance NDAA/TAA compliant, making it suitable for federal, state, and enterprise-level security deployments.

General Information

Name: Digital Watchdog DW-ILIRIP940 940nm IR LED IP-Enabled PoE+ Illuminator

Category: Digital Watchdog, Video Surveillance, Video Accessories, Illuminators

UPC Code: 812226031290

Country of Origin: United Kingdom. Country of origin is subject to change.

Specifications

: ADI Part Number 6K-ILIRIP940 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DW-ILIRIP940 Product Line SiteWatch Product Model DW-ILIRIP940 Product Name 940nm IR LED IP-enabled PoE+ Illuminator Product Series NightWatch Product Type Infrared Illuminator

: Application/Usage Outdoor, Surveillance Device Supported Video Surveillance System Material Aluminum, Stainless Steel Video Formats H.264, MJPEG

: Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes

: Operating Temperature (T-T) -58-122°F

: Color Black Depth 3.1" Dimensions 4.33" x 4.48" x 3.07" Durability Impact Resistant Height 4.5" Width 4.3"

: Limited Warranty 2-Year

: Certifications IEC/EN 60529, IEC/EN 62262 Country of Origin GB Features Adjustable Light Intensity, PoE, SMT LED Technology, Wall Mountable Impact Protection Rating IK09 Indoor/Outdoor Outdoor
