Digital Watchdog DW-ILWLIPM NightWatch White Light Illuminator, 374' (114m) Range

DW-ILWLIPM | 6K-ILWLIPM

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

The SiteWatch DW-ILWLIPM is an IP-enabled white light LED outdoor illuminator. The illuminator incorporates the latest surface mount Dual-Core LEDs, combined with enhanced optical output and outstanding reliability to provide users with smart lighting solutions for a wide range of applications. The DW-ILWLIPM illuminator includes an interchangeable lens pack to deliver a variety of angles out of the box providing users the flexibility to create different elliptical beam profiles. Using PoE and IP communication, the SiteWatch illuminators support direct integration with DW Spectrum IPVMS.

Main Features

Active Deterrence Lighting Floods areas with bright white light upon motion detection, deterring intruders and enhancing real-time security response.
Wide Coverage Range Delivers up to 374 feet (114m) of visible illumination, ideal for medium-range perimeter protection and outdoor surveillance.
Customizable Beam Angles Includes interchangeable lens packs to create elliptical beam profiles from 10° to 95°, aligning perfectly with camera fields of view.
DW Spectrum Integration Directly integrates with DW Spectrum IPVMS for centralized control, event-triggered activation, and seamless system management.
Built-In Web Interface Configure illumination settings remotely with an intuitive web interface—no extra software required.
High-Efficiency Dual-Core™ LEDs Equipped with advanced surface-mount Dual-Core™ LEDs for powerful output and long-lasting performance.
Environmental Durability IP66-rated for dust and water resistance and IK09-rated for impact protection, built to withstand harsh outdoor conditions.
Adjustable Illumination & Photocell Fine-tune light levels (10%–100%) and photocell sensitivity (20–70 lux) to suit specific site requirements.

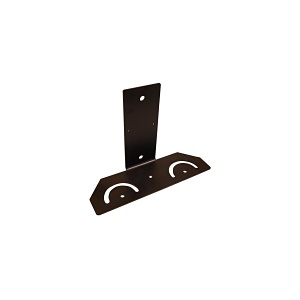

Flexible Mounting Options Supports modular mounting brackets for single, dual, or triple illuminator setups, adapting to diverse installation needs.
NDAA/TAA Compliant Meets federal procurement standards, making it suitable for government, military, and enterprise-level installations.

General Information

Name: Digital Watchdog DW-ILWLIPM NightWatch White Light Illuminator, 374' (114m) Range

Category: Digital Watchdog, Video Surveillance, Video Accessories, Illuminators

UPC Code: 812226031306

Country of Origin: United Kingdom. Country of origin is subject to change.

Specifications

: ADI Part Number 6K-ILWLIPM Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DW-ILWLIPM Product Line SiteWatch Product Model DW-ILWLIPM Product Name White light LED IP-enabled PoE+ illuminator Product Series NightWatch Product Type White Light Illuminator

: Application/Usage Outdoor Light Output 2400 lm Video Formats H.264, MJPEG

: Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes

: Operating Temperature (T-T) -58-122°F

: Color Black Depth 3.1" Dimensions 4.33" x 4.48" x 3.07" Durability Impact Resistant Height 4.5" Width 4.3"

: Limited Warranty 2-Year

: Additional Information
Country of origin: United Kingdom. Country of origin is subject to change.
Certifications IEC/EN 60529, IEC/EN 62262 Country of Origin GB Features Interchangeable Lens, LED Illumination, PoE, Robust, Surface Mount LED Technology, Wall Mountable Impact Protection Rating IK09 Indoor/Outdoor Outdoor Package Contents

White light LED IP-enabled PoE+ illuminator

Interchangeable Lens Pack
