Overview
Specifications
Documents
Product Overview

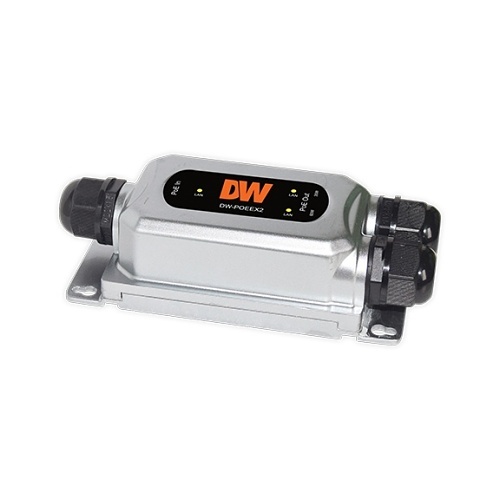

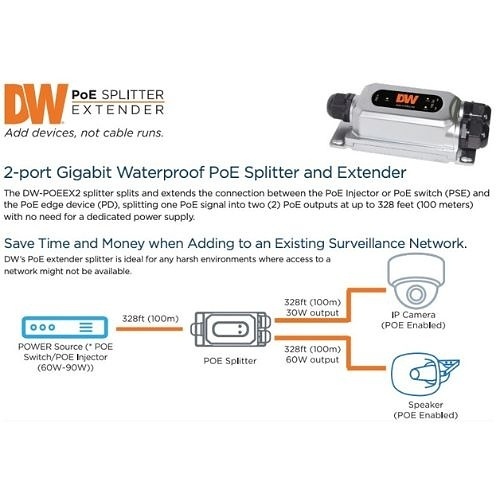

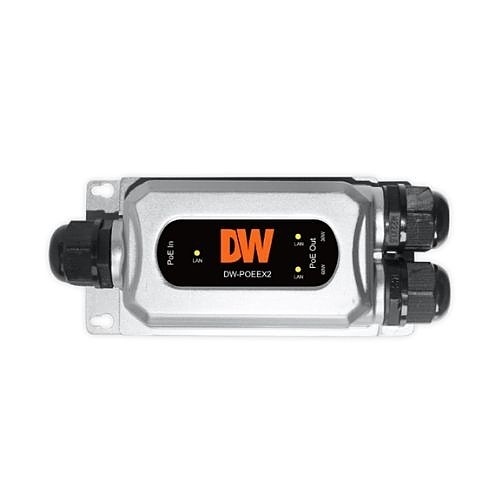

DW's 2-port Gigabit waterproof PoE extender splitter splits and extends the connection between a PoE Injector or PoE switch (PSE) and the PoE edge device (PD). The DW-POEEX2 supports one RJ45 90W port input (IEEE802.3bt) and delivers two (2) split PoE ports with 30W and 60W Support at up to 328 feet (100 meters). With a robust IP67-rated, IK10 impact-resistant housing and no need for a power adapter, DW’s PoE extender splitter is ideal for harsh environments where access to a network might not be available.
Main Features
- Single (1) 90W PD input, two (2) PSE split output. Total available power depends on total available input and required output
- PoE power supply distance up to 328' (100m)
- Plug-and-play solution with no configuration
- Data and power carried over the same cable
- No power adapter is required
- Ideal for harsh outdoor environment
- IEEE802.3af/at/bt standard compliance
- Support 10/100/1000Mbps data transmission
- IP67- and IK10-rated housing built to last
General Information
Name: Digital Watchdog DW-POEEX2 2-Port Gigabit Waterproof PoE Extender Splitter
Category: Digital Watchdog, Data Comm & Networking, PoE Devices, PoE Splitters, PoE Extenders
UPC Code: 812226039913
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number 6K-POEEX2 Brand Name Digital Watchdog Manufacturer Part Number DW-POEEX2 Product Line SiteWatch Surge Protection Yes
-
Ingress Protection Rating IP67
-
Operating Humidity 10-90% RH Operating Temperature (T-T) -4-140°F Storage Temperature (T-T) -40-176°F
-
Color Silver Durability Impact Resistant Material Metal
-
Mount Type Wall Mount
-
Limited Warranty 1-Year
-
Certifications CE, FCC Impact Protection Rating IK10 Package Contents Ground cable, QSG, Screws and plastic anchors, Waterproof Cap, Wrench (27mm)
