Paige

Paige 1U18022B5 18/2 Stranded Cable OAS CM, 500', White

1U18022B5

6M-1U18022B5

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All Paige

Paige 1U18022B5 18/2 Stranded Cable OAS CM, 500', White

1U18022B5 | 6M-1U18022B5

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

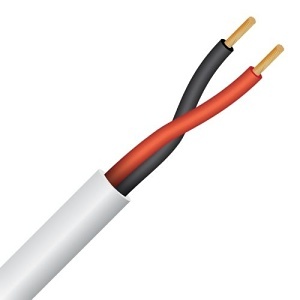

This cable consists of 2 conductors 18 AWG stranded bare copper; color-coded PVC insulation; overall aluminum polyester shield with drain wire; overall white PVC jacket.

Main Features

UL listed CM low‑voltage control cable
18 AWG, 2‑conductor stranded bare copper
Overall aluminum polyester shield with drain wire; white PVC jacket
Available in 500 ft packaging

General Information

Name: Paige 1U18022B5 18/2 Stranded Cable OAS CM, 500', White

Category: Paige, Wire & Cable, Security & Access Control Cables, General Unshielded Cables

UPC Code:

Country of Origin: China. Country of origin is subject to change.

Specifications

: ADI Part Number 6M-1U18022B5 Brand Name Paige Manufacturer Part Number 1U18022B5

: American Wire Gauge 18AWG Cable Rating General Purpose Cable Type General Purpose Conductor Material Bare Copper Jacket Material PVC Material Bare Copper Number of Conductors 2 Shielding No Solid or Stranded Stranded

: Cable Length 500' Color White Insulation Material PVC Package Type Box

: Environmental Certification RoHS

Documents and Resources

Download All Documents

Product Data Sheet
