Belden 1172A B59500 Microphone Cable, Star Quad, 4 Conductor 26 AWG (30 x 40) Stranded High Conductivity Bare Copper, Shielded, Black, Reel, 500'
1172A B59500
|7B-1172AB59H
Shop All Belden
Belden 1172A B59500 Microphone Cable, Star Quad, 4 Conductor 26 AWG (30 x 40) Stranded High Conductivity Bare Copper, Shielded, Black, Reel, 500'
1172A B59500 | 7B-1172AB59H
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

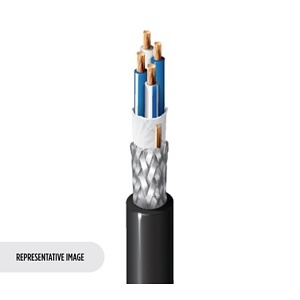

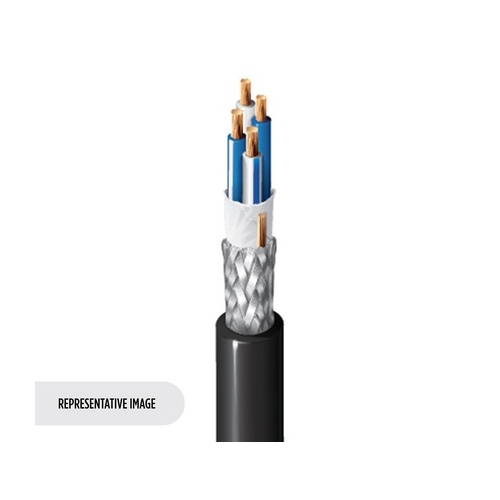

Microphone Cable, Star Quad, 4 Conductor 26 AWG (30 x 40) High Conductivity Bare Copper, PE Insulation, 95% Tinned Copper French Braid Shield, PVC Jacket, Flexible.
Main Features
- 4 conductor 26 AWG (30 x 40) high conductivity bare copper
- Star quad microphone cable construction
- PE insulation for durability
- 95% tinned copper French braid shield for interference protection
- PVC jacket for flexibility and protection
- Flexible design for ease of use
General Information
Name: Belden 1172A B59500 Microphone Cable, Star Quad, 4 Conductor 26 AWG (30 x 40) Stranded High Conductivity Bare Copper, Shielded, Black, Reel, 500'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825107774
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1172AB59H Brand Name Belden Manufacturer Part Number 1172A B59500 Packaged Quantity 152
American Wire Gauge 26AWG Application/Usage Low Noise for high-EMI environments; Line level balanced analog audio, Microphone Conductor Count 4 Conductor Material Bare Copper Jacket Material PVC Number of Conductors 4 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-60°C
Cable Length 500' Color Black Insulation Material PE, PO, PP Package Type Reel
Limited Warranty 10-Year
Country of Origin US Indoor/Outdoor Indoor, Outdoor
