Belden 1502P 877Z1000 22/1 Pair Tinned Copper, 18/2 Stranded Multimedia Control Cable, Plenum, 1,000' (304.8m) ReelTuff Box
1502P 877Z1000|7B-1502P877Z
Belden 1502P 877Z1000 22/1 Pair Tinned Copper, 18/2 Stranded Multimedia Control Cable, Plenum, 1,000' (304.8m) ReelTuff Box
1502P 877Z1000|7B-1502P877Z
Key Features
- Control the compatible device with ease
- Features Bare Wire cable type to better acco mmodate your precise requirements with maximum productivity
- Stranded feature for better usability and increased efficiency
Key Features
- Control the compatible device with ease
- Features Bare Wire cable type to better acco mmodate your precise requirements with maximum productivity
- Stranded feature for better usability and increased efficiency
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Control the compatible device with ease
- Features Bare Wire cable type to better acco mmodate your precise requirements with maximum productivity
- Stranded feature for better usability and increased efficiency
Belden
Belden 1502P 877Z1000 22/1 Pair Tinned Copper, 18/2 Stranded Multimedia Control Cable, Plenum, 1,000' (304.8m) ReelTuff Box
1502P 877Z1000 | 7B-1502P877Z
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

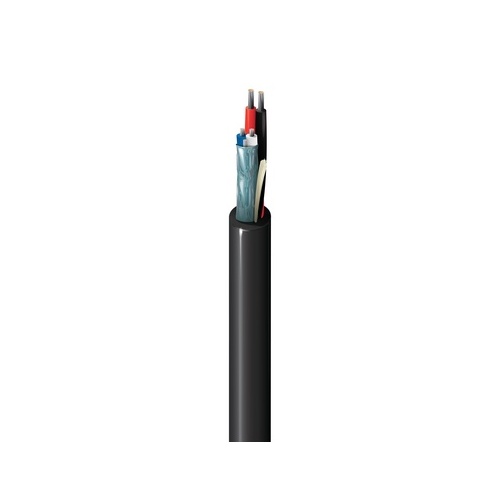

Multimedia Control Cable, 1 Pair 22 AWG stranded (7x30) tinned copper (data) with foam FEP insulation, Beldfoil® shield w/ drain, 2 Conductor 18 AWG stranded (16x30) tinned copper conductor (power) with Flamarrest® insulation, Plenum, Flamarrest® jacket
Main Features
- Control the compatible device with ease
- Features Bare Wire cable type to better acco mmodate your precise requirements with maximum productivity
- Stranded feature for better usability and increased efficiency
- Control System device supported according to your requirements with maximum productivity
General Information
Name: Belden 1502P 877Z1000 22/1 Pair Tinned Copper, 18/2 Stranded Multimedia Control Cable, Plenum, 1,000' (304.8m) ReelTuff Box
Category: Belden, Wire & Cable, Security & Access Control Cables, Multipair Cables
UPC Code: 612825435105
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 7B-1502P877Z Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 1502P 877Z1000 Packaged Quantity 305 Product Name 1502P Media Control, 1 Pair 22 AWG TC, 2 Cond. 18 AWG, Plenum Product Type Control Cable
-
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Category 6 Conductor Count 4 Conductor Material Tinned Copper Device Supported Control System Jacket Material PVC-LS Jacket Type FT6, Plenum Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
-
Operating Temperature (T-T) 140°F
-
Cable Length 1000' Color Clear Insulation Material FEP Material PVC Package Type ReelTuff Box
-
Length 1000'
-
Country of Origin US Environmental Certification RoHS, WEEE Environmentally Friendly Yes Features Bendable, Stranded Indoor/Outdoor Indoor
