Belden 1505A 0011000 20 Solid Polyethylene GIFHDPE SH FR Polyvinyl Chloride, 20', Black
1505A 0011000
|7B-1505100BR
Shop All Belden
Belden 1505A 0011000 20 Solid Polyethylene GIFHDPE SH FR Polyvinyl Chloride, 20', Black
1505A 0011000 | 7B-1505100BR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

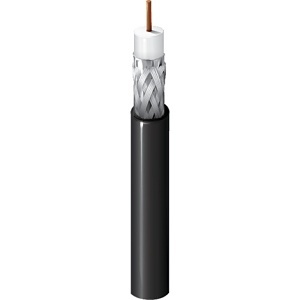

75 Ohm SDI Coax, RG-59, 20 AWG Solid Bare Copper Conductor, PE Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMR.
Main Features
- 75 Ohm SDI Coax cable with RG-59 specification
- 20 AWG solid bare copper conductor
- Polyethylene (PE) insulation
- 95% tinned copper foil and braid shield
- Polyvinyl Chloride (PVC) jacket
- Cable length 20'
- CMR fire-retardant rating
General Information
Name: Belden 1505A 0011000 20 Solid Polyethylene GIFHDPE SH FR Polyvinyl Chloride, 20', Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825358381
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1505100BR Application/Usage 6 Gb/s UHDTV, Digital Video, HD-SDI 1080p Brand Name Belden Country of Origin MX Manufacturer Part Number 1505A 0011000 Package Type Reel/Spool Packaged Quantity 1
American Wire Gauge 20AWG Conductor Count 1 Conductor Material Bare Copper Number of Conductors 1 Number of Gangs 1 Shielding Yes Solid or Stranded solid Total Number of Sockets 2
Operating Temperature (T-T) -30-75°C
Cable Length 1000.00' Color Brown Insulation Material PE, PO, PP Jacket Material PVC
Length 1000.00'
Limited Warranty 10-Year
Indoor/Outdoor Indoor
