Belden 1523A 0101000 Broadband Coax, Series 11, 14 AWG Solid BCCS, Foil 60% AL Braid, PVC Jkt, CM, 1000', Black
1523A 0101000
|7B-1523A0101
Shop All Belden
Belden 1523A 0101000 Broadband Coax, Series 11, 14 AWG Solid BCCS, Foil 60% AL Braid, PVC Jkt, CM, 1000', Black
1523A 0101000 | 7B-1523A0101
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

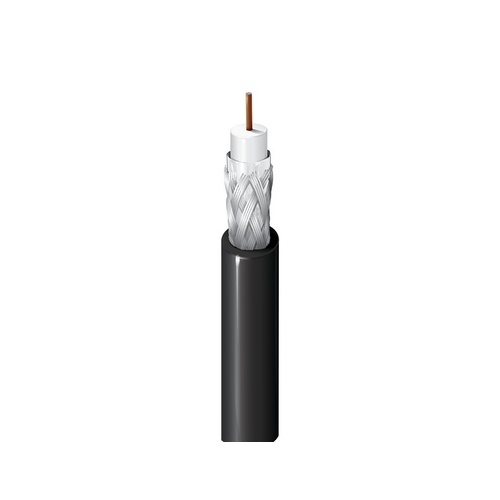

Broadband Coax, Series 11, 14 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CM
Main Features
- Broadband Coax, Series 11
- 14 AWG Solid BCCS Conductor
- Foil + 60% Aluminum Braid Shield
- PVC Jacket, CM Rated
- 1000' Length, Black Color
- PE Insulation for Safety
General Information
Name: Belden 1523A 0101000 Broadband Coax, Series 11, 14 AWG Solid BCCS, Foil 60% AL Braid, PVC Jkt, CM, 1000', Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825316350
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number 7B-1523A0101 Brand Name Belden Manufacturer Part Number 1523A 0101000 Packaged Quantity 305
American Wire Gauge 14AWG Application/Usage Broadband, Cable Television (CATV), Over-The-Air (OTA) antennas, RF drop cable Cable Type Category 6a Conductor Count 1 Conductor Material Bare Copper Impedance 75 ohms Jacket Material PVC Material PVC Number of Conductors 1 Shielding Braid, Foil Solid or Stranded Solid
Operating Temperature (T-T) -40-75°C
Cable Length 1000' Color Black Insulation Material PE, PO, PP Package Type Reel
Limited Warranty 10-Year
Country of Origin CN Indoor/Outdoor Indoor
