Belden 1525A 0101000 14AWG Coaxial Cable, 75 ohm, 1000' (304.80m)
1525A 0101000
|7B-1525A0101
Shop All Belden
Belden 1525A 0101000 14AWG Coaxial Cable, 75 ohm, 1000' (304.80m)
1525A 0101000 | 7B-1525A0101
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

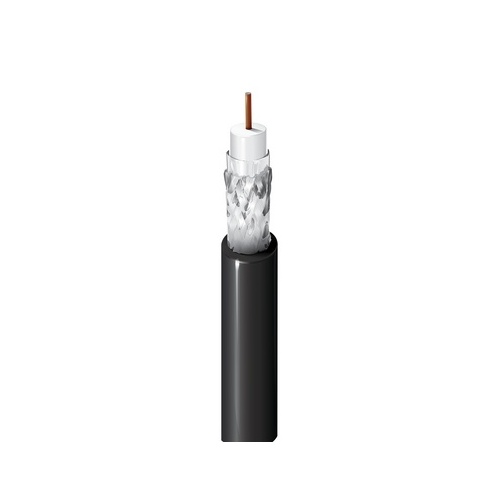

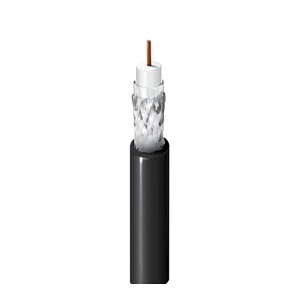

Broadband Coax, Series 11, 14 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil 60% Aluminum Braid Shield, PE Jacket, Waterblocked.
Main Features
- 14 AWG solid bare copper covered steel conductor
- 75 ohm impedance
- 1000' (304.80 m) length
- PE insulation and jacket
- Foil plus 60% aluminum braid shield
- Waterblocked design
- Part of Broadband Coax Series 11
General Information
Name: Belden 1525A 0101000 14AWG Coaxial Cable, 75 ohm, 1000' (304.80m)
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825316435
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1525A0101 Brand Name Belden Manufacturer Part Number 1525A 0101000 Packaged Quantity 305
American Wire Gauge 14AWG Application/Usage Broadband, Cable Television (CATV), Over-The-Air (OTA) antennas, RF drop cable Conductor Count 1 Conductor Material Bare Copper Impedance 75 ohms Jacket Material PE Number of Conductors 1 Shielding Braid, Foil Solid or Stranded Solid
Operating Temperature (T-T) -55-80°C
Cable Length 1000' Color Black Insulation Material PE, PO, PP Package Type Reel
Installation Type Burial
Limited Warranty 10-Year
Country of Origin CN Indoor/Outdoor Outdoor
