Belden 1701A 009U1000 Category 5E+ Premise Horizontal Cable 350 MHz, 4-Bonded Pairs, 24 AWG Solid BC Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket

Brand: Belden
ADI #:7B-1701A009C Model #: 1701A 009U1000  Name: Belden 1701A 009U1000 Category 5E+ Premise Horizontal Cable 350 MHz, 4-Bonded Pairs, 24 AWG Solid BC Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket
  • Experience a simpler way to connect devices with the entire business network
  • Features Category 5e+ cable type for optimal performance and better dependability
  • PoE feature for your convenience and ease of usage

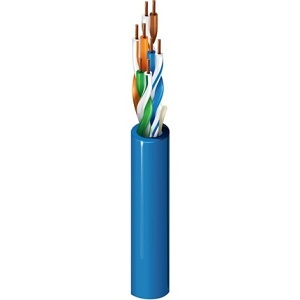

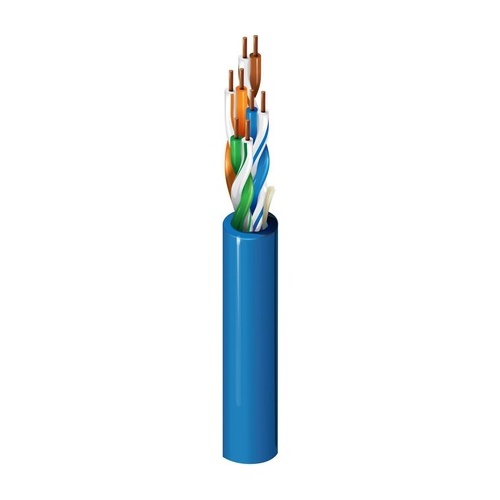

Image of 7B-1701A009C

Product Overview

Discover the Belden 1701A 009U1000, a Category 5E+ Premise Horizontal Cable designed for superior network performance. Boasting a 350 MHz bandwidth with 4 bonded pairs of 24 AWG solid bare copper conductors, this U/UTP plenum-rated cable ensures reliable connectivity and enhanced dependability. Its Flamarrest PVC-LS jacket offers added safety. Ideal for powering devices with PoE, it's fully compatible with your network devices, simplifying connections across your business network. Upgrade your setup today for unmatched performance and convenience.

General Information

Name : Belden 1701A 009U1000 Category 5E+ Premise Horizontal Cable 350 MHz, 4-Bonded Pairs, 24 AWG Solid BC Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket , Belden
Category : Category 5e Network Cables
UPC Code : 612825121831

Specifications

General Information

ADI Part Number : 7B-1701A009C
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 1701A 009U1000
Product Name : Category 5E+ Cable, 4 Bonded-Pairs, U/UTP, CMP
Product Type : Network Cable

Technical Information

American Wire Gauge : 24AWG
Cable Rating : Plenum
Conductor Count : 4
Device Supported : Network Device
Jacket Material : LS PVC
Number of Conductors : 8
Number of Pairs : 4

Media & Performance

Data Transfer Rate : 1 Gbit/s
Data Transfer Rate (Bps) : 134217728

Physical Characteristics

Cable Length (mm) : 304800
Insulation Material : FEP

Miscellaneous

Environmental Certification : China RoHS 2, EU RoHS, EU WEEE, REACH, RoHS 2
Environmentally Friendly : Yes
Features : Bendable, POE, PoE+, PoE++, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Equal Level Far-End Crosstalk (PSELFEXT), Power-sum Near End Crosstalk (PSNEXT)
