Belden 1815R 0101000 22/4 Indoor Stranded Shielded and Jacketed CMR PVC Audio Snake Cable, Black
1815R 0101000
|7B-1815R110
Shop All Belden
Belden 1815R 0101000 22/4 Indoor Stranded Shielded and Jacketed CMR PVC Audio Snake Cable, Black
1815R 0101000 | 7B-1815R110
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

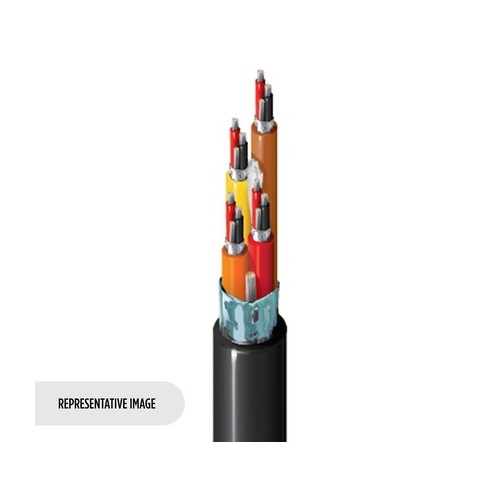

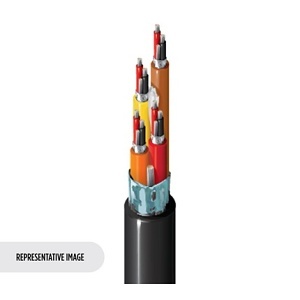

The Belden 1815R 0101000 is a 22/4 indoor stranded shielded and jacketed audio snake cable designed for reliable audio signal transmission. It features 22 AWG stranded (7x30) TC conductors with polyolefin insulation and each conductor is individually shielded using bonded Beldfoil for superior noise rejection. The cable includes numbered and color-coded PVC jackets; jackets and shields are bonded for simultaneous stripping, topped with an overall black PVC jacket and equipped with a nylon rip cord for easy installation. This product fits well in indoor audio applications requiring durable and well-shielded cabling solutions.
Main Features
- 22 AWG stranded (7x30) TC conductor
- Polyolefin insulation
- Individually shielded with bonded Beldfoil
- Numbered/color-coded PVC jackets
- Bonded jackets and shields for simultaneous stripping
- Overall black PVC jacket
- Nylon rip cord
- Indoor stranded shielded and jacketed CMR PVC audio snake cable
General Information
Name: Belden 1815R 0101000 22/4 Indoor Stranded Shielded and Jacketed CMR PVC Audio Snake Cable, Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1815R110 Application/Usage amplifiers, mixing consoles; Live events or studio sound; Analog audio, Multi-channel interconnect between audio equipment such as microphones, Speakers Brand Name Belden Country of Origin US Manufacturer Part Number 1815R 0101000 Package Type Reel/Spool Packaged Quantity 305
American Wire Gauge 22AWG Cable Rating Riser Conductor Count 8 Conductor Material Tinned Copper Jacket Type Plenum Duplex Zip Number of Conductors 8 Number of Pairs 4 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-60°C
Cable Length 1000.00' Color Black Insulation Material PE, PO, PP Jacket Material PVC Material PVC
Length 1000.00'
Limited Warranty 10-Year
Indoor/Outdoor Indoor
