Product Overview

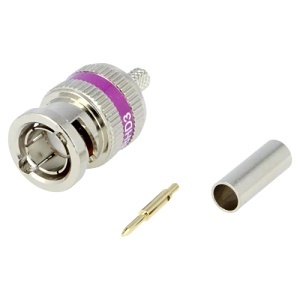

This single 6 Hz BNC 3-Piece Crimp Connector from Belden is designed for use with the Belden Mini RG59 coax cable. It has an impedance rating of 75 ohms and delivers a minimum return loss of 7 to 15 dB at 5 to 6000 MHz. This BNC connector is suitable for HD-SDI video signal, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s, and HD-SDI 1080p applications. With its traditional three-piece design, the nickel plated brass connector offers durability and a solid performance. The connector's design includes an extended head knurl nut for easy gripping when installing. The connector is color-coded with a violet ring to identify its compatibility with Mini RG59 coax cables.
Specifications
ADI Part Number 7B-1855ABHD Brand Name Belden Connector Gender Male Manufacturer Part Number 1855ABHD3 Package Length 0
American Wire Gauge 23AWG
Color Purple
Indoor/Outdoor Indoor
