Belden 2183P D15A1000 23/4 Pair 4K UHD Media Cable, F/UTP, Flamarrest, CMP, 1000' (304.8m) Reel-in-Box, Blue
2183P D15A1000
|7B-2183PD15A
Shop All Belden
Belden 2183P D15A1000 23/4 Pair 4K UHD Media Cable, F/UTP, Flamarrest, CMP, 1000' (304.8m) Reel-in-Box, Blue
2183P D15A1000 | 7B-2183PD15A
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

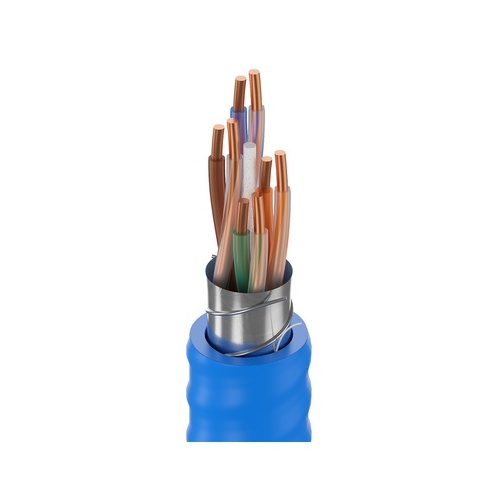

4 Pair 23 AWG Solid Bare Copper Conductors, FEP Insulation, F/UTP, Helical TC Drain, Ripcord, Flamarrest Jacket, Plenum CMP-LP (0.6A).
Belden 2183P cables were designed specifically for optimal performance in 4K HDBaseT transmission. These shielded cables deliver 4K content over 100 meters in a unique, small, sleek design. Combined with either standard field-mount plugs or Belden’s new REVConnect connectivity system, it is the easiest to install, most reliable HDBaseT cabling solution available.
Main Features
- Durable: The cables are resistant to rigors of installation with Bonded-Pair, durable, corrugated flex shield and helical drain
- Optimized: All Belden HDBaseT cables are designed and tested specifically for optimal 4K UHD performance
- Tough: 45 lbs (20 kg) Max. Pull Tension
- Lean: Belden HDBaseT cables are up to 25% smaller than Category 7a cables
- Flexible: The cables are easy to bend and fit into small spaces
- Suitable Applications: HDBaseT, Full 5-Play, 4K (UHD/DCI), POH, POE
- Environmental Suitability: Indoor - Plenum, Indoor, Outdoor
- 23AWG, Solid, BC - Bare Copper
- FEP - Fluorinated Ethylene Propylene Insulation
- 300 V
General Information
Name: Belden 2183P D15A1000 23/4 Pair 4K UHD Media Cable, F/UTP, Flamarrest, CMP, 1000' (304.8m) Reel-in-Box, Blue
Category: Belden, Wire & Cable, Network Cables, Category 6A Network Cables
UPC Code: 612825391685
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-2183PD15A Brand Name Belden Manufacturer Part Number 2183P D15A1000 Packaged Quantity 305
American Wire Gauge 23AWG Application/Usage 4K (UHD/DCI), Full 5-Play, HDBaseT, PoE, POH Cable Rating Plenum Conductor Count 8 Conductor Material Bare Copper Fiber Category OM1 Jacket Material PVC Jacket Type CL3P, CMP, CMP-LP, Plenum Number of Conductors 8 Number of Pairs 4 Shielding Yes Solid or Stranded Solid
Operating Temperature (T-T) -20-90°C Storage Temperature (T-T) -20-75°C
Cable Length 1000' Color Blue Insulation Material FEP Package Type Reel-in-Box
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor, Outdoor
