Belden 2412FS 0031000 Category 6+ Enhanced Premise Horizontal Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket, Orange, Reel, 1,000'
2412FS 0031000
|7B-2412FS00R
Shop All Belden
Belden 2412FS 0031000 Category 6+ Enhanced Premise Horizontal Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket, Orange, Reel, 1,000'
2412FS 0031000 | 7B-2412FS00R
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

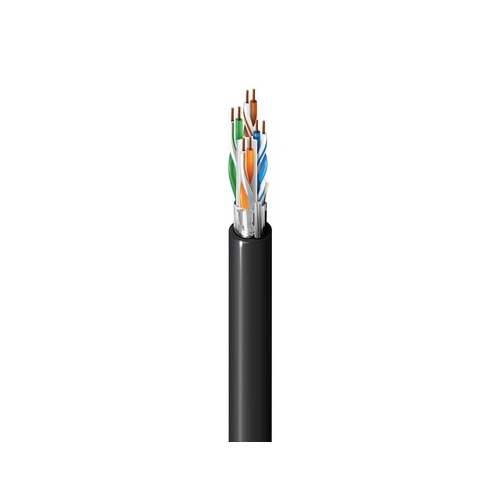

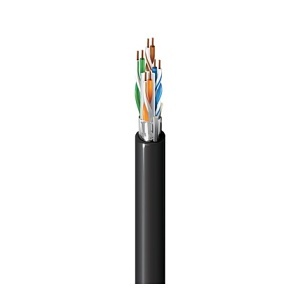

Category 6 Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket.
Main Features
- Category 6+ Enhanced Premise Horizontal Cable at 350MHz bandwidth
- 4 pairs of 23 AWG solid bare copper conductors
- F/UTP - Foil shielded for interference reduction
- Riser-CMR Rated for riser cable applications
- PVC Jacket
- 1000' Reel
General Information
Name: Belden 2412FS 0031000 Category 6+ Enhanced Premise Horizontal Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket, Orange, Reel, 1,000'
Category: Belden, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 612825489429
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-2412FS00R Application/Usage Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Noisy Environments, PoE, PoE+, PoE++, Premise Horizontal Cable, Surveillance Manufacturer Part Number 2412FS 0031000 Package Type Reel/Spool Packaged Quantity 100
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6 Conductor Material Bare Copper Impedance 75.00O Jacket Type Standard Shielding Yes Solid or Stranded solid
Operating Temperature (T-T) -20-75°C Storage Temperature (T-T) -20-75°C
Connector Type SC/UPC
Cable Length 1000.00' Color Orange Insulation Material PE, PO, PP Jacket Material PVC Material Bare Copper, PVC
Length 1000.00'
Indoor/Outdoor Indoor
