Belden 2413FS 0081000 Category 6+ Enhanced Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest PVC-LS Jacket, Gray, Reel, 1,000'
2413FS
|7B-2413FS00S
Shop All Belden
Belden 2413FS 0081000 Category 6+ Enhanced Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest PVC-LS Jacket, Gray, Reel, 1,000'
2413FS | 7B-2413FS00S
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

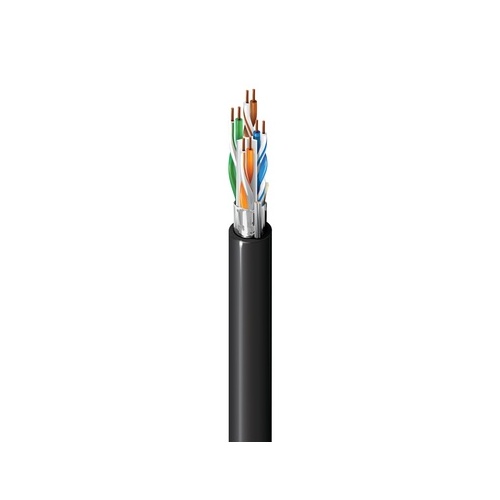

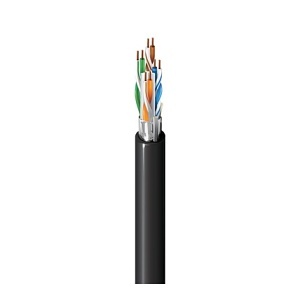

Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest® PVC-LS Jacket
Specifications
ADI Part Number 7B-2413FS00S Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 2413FS 0081000 Packaged Quantity 305 Product Name 2413FS Category 6+ Enhanced Cable, 4 Pair, F/UTP, CMP Product Type Network Cable
American Wire Gauge 23AWG Application/Usage Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Noisy Environments, PoE, PoE+, PoE++, Premise Horizontal Cable, Surveillance Cable Rating Plenum Cable Type Category 6 Conductor Count 8 Conductor Material Bare Copper Device Supported Network Device Jacket Material PVC Jacket Type CMP, Plenum Material Bare Copper Number of Conductors 8 Number of Pairs 4 Shielding Foil Solid or Stranded Solid
Operating Temperature (T-T) -20-75°C Storage Temperature (T-T) -20-75°C
Data Transfer Rate 1 Gbit/s
ADI Part Number Replaces 7B-2413F0051 Model Number Replaces 2413F 0051000
Cable Length 1000' Color Gray Insulation Material FEP Package Type Reel
Country of Origin MX Environmental Certification China RoHS 2, EU RoHS, EU WEEE, REACH, RoHS 2 Environmentally Friendly Yes Features Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Bendable, Bi-laminate Shielding, Equal Level Far End Crosstalk (ELFEXT), Minimized Near-End Crosstalk (NEXT), PoE, PoE+, PoE++, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Equal Level Far-End Crosstalk (PSELFEXT), Power-sum Near End Crosstalk (PSNEXT), Stranded Indoor/Outdoor Indoor
