Belden 3107A 0101000 22-2 RS-485 TC Shielded Cable, 1000' Reel, Black
3107A 0101000
|7B-3107A0101
Shop All Belden
Belden 3107A 0101000 22-2 RS-485 TC Shielded Cable, 1000' Reel, Black
3107A 0101000 | 7B-3107A0101
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

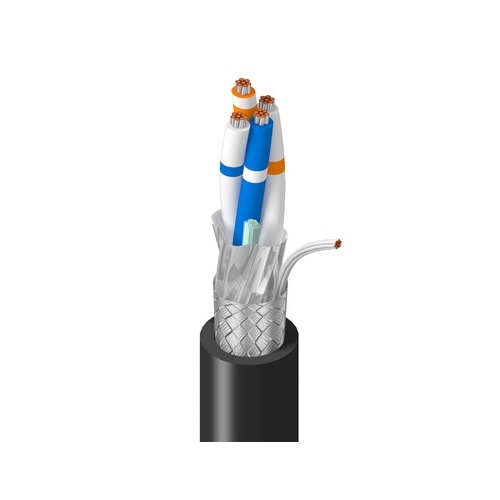

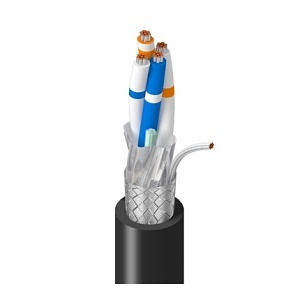

RS-485, 2 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CM, PLTC, and oil-resistant.
Main Features
- RS-485 communication standard
- 2 Pair 22AWG (7x30) Tinned Copper conductors
- PE Insulation for durability
- Overall Beldfoil Tinned Copper Braid (65%) Shield
- PVC Outer Jacket providing CM and PLTC ratings
- Oil-resistant coating
- Comes in a 1000' reel
- Black color jacket
General Information
Name: Belden 3107A 0101000 22-2 RS-485 TC Shielded Cable, 1000' Reel, Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825141686
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-3107A0101 Brand Name Belden Manufacturer Part Number 3107A 0101000 Packaged Quantity 305
American Wire Gauge 22AWG Application/Usage Audio, data communication, etc., factory or process automation, harsh environment, IIoT, Video Conductor Count 4 Conductor Material Tin-plated Copper Jacket Material PVC Number of Conductors 4 Number of Pairs 2 Shielding Braid, Foil Solid or Stranded Stranded
Operating Temperature (T-T) -20-60°C
Cable Length 1000' Color Black Insulation Material PE, PO, PP Package Type Reel
Limited Warranty 10-Year
Country of Origin US Indoor/Outdoor Indoor, Outdoor
