Belden 3093A0105000 18 AWG Sol BCCS Foam FEP Insulation Cable DBSH SLF
3093A0105000
|7B-39315
Shop All Belden
Belden 3093A0105000 18 AWG Sol BCCS Foam FEP Insulation Cable DBSH SLF
3093A0105000 | 7B-39315
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

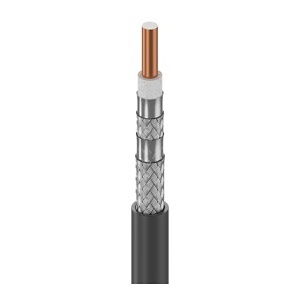

Coax RG-6 18AWG (Solid) Bare Copper Covered Steel, Foam FEP Insulation, Overall Duobond II+ Aluminum Braid(60%)+Duofoil+Aluminum Braid(40%) Shield, PVDF Outer Jacket, CMP High Temp 150C.
Main Features
- Coax RG-6 18AWG Solid Bare Copper
- Foam FEP Insulation for Durability
- Duobond II+ Aluminum Braid Shield
- PVDF Outer Jacket for High Temp
- CMP Rated for 150C
- Ideal for Coax RG-6 Applications
General Information
Name: Belden 3093A0105000 18 AWG Sol BCCS Foam FEP Insulation Cable DBSH SLF
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number 7B-39315 Brand Name Belden Manufacturer Part Number 3093A0105000 Product Name ControlBus, Coax RG-6, #18 Sol BCCS, FFEP Ins, QUAD AL Shld, PVDF Jkt, CMP High Temp 150C Product Type Coaxial Cable
American Wire Gauge 18AWG Application/Usage ControlNet factory floor applications, factory automation, harsh environment Cable Rating Plenum Cable Type RG-6 Conductor Count 1 Conductor Material Bare Copper Impedance 75 ohms Jacket Material PVDF Material Bare Copper Covered Steel, PVDF Shielding Braid, Foil Solid or Stranded Solid
Operating Temperature (T-T) -20-150°C
Cable Length 5000' Color Black Insulation Material FEP Package Type Reel Weight 180lb
Limited Warranty 10-Year
Indoor/Outdoor Indoor, Outdoor
