Belden 4694ANH 0101000 18AWG 4K UHD RG6 Coaxial Cable, LSZH, 1000' Reel, Black
4694ANH 0101000
|7B-4694ANH01
Shop all Belden
Belden 4694ANH 0101000 18AWG 4K UHD RG6 Coaxial Cable, LSZH, 1000' Reel, Black
4694ANH 0101000 | 7B-4694ANH01
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

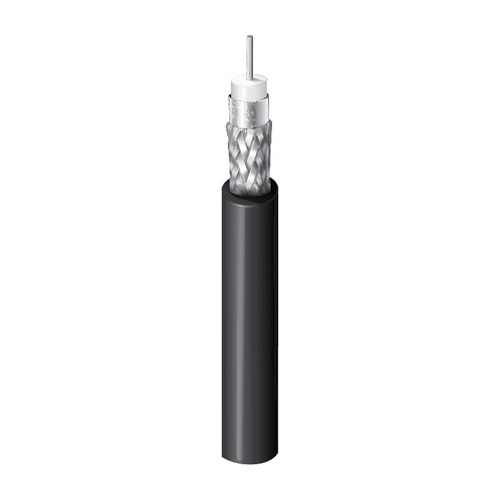

12 GHz Coax, 4K UHD Precision Video Cable, RG-6/U Type, 75 Ohm, 18 AWG solid .040" silver plated copper conductor, gas-injected foam HDPE insulation, Duofoil bonded to core tinned copper braid shield (95% coverage), LSZH jacket.
General Information
Name: Belden 4694ANH 0101000 18AWG 4K UHD RG6 Coaxial Cable, LSZH, 1000' Reel, Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825437185
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-4694ANH01 Brand Name Belden Manufacturer Part Number 4694ANH 0101000 Packaged Quantity 305
American Wire Gauge 18AWG Application/Usage SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P Conductor Count 1 Conductor Material Silvered Copper Fiber Category OS2 Jacket Material FRNC, LSZH Number of Conductors 1 Shielding Yes Solid or Stranded Solid
Operating Temperature (T-T) -30-75°C
Color Black Insulation Material PO Package Type Reel
Length 1000'
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
