Belden 4855R 0021000 4K UHD Coaxial Video Cable for 12G-SDI, 75 Ohm, Mini RG-59, 23 AWG Solid SC, Foil Plus 95% TC Braid, PVC Jacket, CMR, Red, Reel, 1000'
4855R 0021000
|7B-4855R21
Shop All Belden
Belden 4855R 0021000 4K UHD Coaxial Video Cable for 12G-SDI, 75 Ohm, Mini RG-59, 23 AWG Solid SC, Foil Plus 95% TC Braid, PVC Jacket, CMR, Red, Reel, 1000'
4855R 0021000 | 7B-4855R21
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

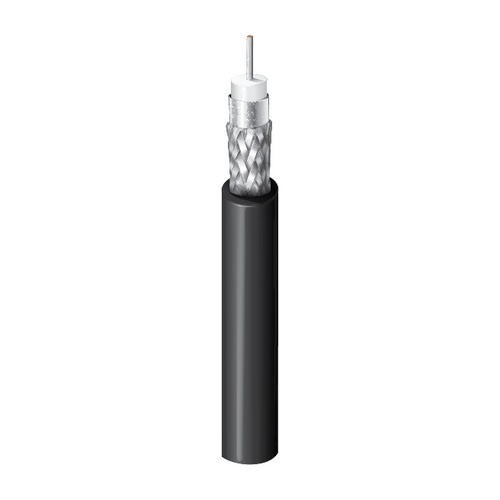

12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 23 AWG solid 0.023" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil bonded to the core plus tinned copper braid shield (95% coverage), PVC Jacket.
Main Features
- Ultra-High Definition Digital Video Cable
- 23AWG, Solid, SC - Silvered Copper
- Mini RG-59 cable type
- Suitable Applications: 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p
- Gas-injected foamed high-density polyethylene insulation
- Duofoil bonded to core tinned copper braid shield with 95% coverage
- PVC jacket with CMR rating for fire resistance
- 300 V RMS (CMR, CMG) UL Voltage Rating
- Indoor - Riser
- UL1666 Vertical Shaft
General Information
Name: Belden 4855R 0021000 4K UHD Coaxial Video Cable for 12G-SDI, 75 Ohm, Mini RG-59, 23 AWG Solid SC, Foil Plus 95% TC Braid, PVC Jacket, CMR, Red, Reel, 1000'
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825395232
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-4855R21 Brand Name Belden Manufacturer Part Number 4855R 0021000 Packaged Quantity 305
American Wire Gauge 23AWG Application/Usage 4K D-Cinema, 4K Single-link 12 Gb/s UHDTV, 8K Quad-link UHDTV, HD-SDI 1080p, Ultra-High Definition Digital Video Cable Rating Riser Conductor Count 1 Conductor Material Silver-plated Copper Jacket Material PVC Number of Conductors 1 Shielding Braid, Foil Solid or Stranded Solid
Operating Temperature (T-T) -30-75°C
Cable Length 1000' Color Red Insulation Material PE, PO, PP Package Type Reel
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
