Belden 5240U1 0101000 Security & Sound Cable, 2-Conductor 16 AWG, Unshielded, CMG-FPL-PLTC Rated, Water-Blocked, PVC Jacket, Black
5240U1 0101000
|7B-5240U1011
Shop All Belden
Belden 5240U1 0101000 Security & Sound Cable, 2-Conductor 16 AWG, Unshielded, CMG-FPL-PLTC Rated, Water-Blocked, PVC Jacket, Black
5240U1 0101000 | 7B-5240U1011
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

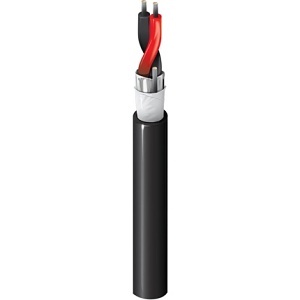

Security and Sound Cable, Rated-CMG-FPL-PLTC, 1-16 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket.
Main Features
- 2-Conductor 16 AWG stranded tinned copper pair
- Unshielded construction
- CMG-FPL-PLTC rated cable
- Water-blocked with waterblocking tape
- PVC insulation on conductors
- Black PVC jacket
General Information
Name: Belden 5240U1 0101000 Security & Sound Cable, 2-Conductor 16 AWG, Unshielded, CMG-FPL-PLTC Rated, Water-Blocked, PVC Jacket, Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825158721
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number 7B-5240U1011 Application/Usage Audio/Speaker, Below-Grade Duct, Intercom/PA, Power-Limited Controls, Security System, Wet Location Brand Name Belden Country of Origin MX Manufacturer Part Number 5240U1 0101000 Packaged Quantity 100, 305
American Wire Gauge 16AWG Conductor Count 2 Conductor Material Tinned Copper Fiber Category OM2 Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -30-105°C
Cable Length 1000.00' Color Black Insulation Material PVC Jacket Material PVC
Length 1000.00'
Indoor/Outdoor Indoor, Outdoor
