Belden 5300UE 0081000 Security & Sound Cable, 2-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
5300UE 0081000
|7B-530010EGY
Shop All Belden
Belden 5300UE 0081000 Security & Sound Cable, 2-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
5300UE 0081000 | 7B-530010EGY
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

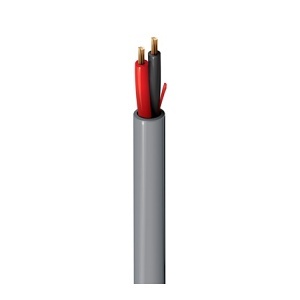

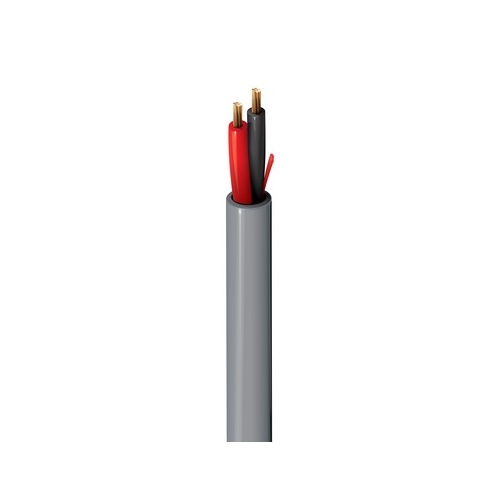

Security and Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.
Main Features
- 2-conductor 18 AWG stranded bare copper conductors
- Unshielded cable design
- Riser CMR rated for building riser applications
- PVC jacket with ripcord for easy stripping
- Polypropylene insulation on conductors
- Gray jacket color
- Designed for security and commercial audio applications
General Information
Name: Belden 5300UE 0081000 Security & Sound Cable, 2-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825159131
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number 7B-530010EGY Brand Name Belden Manufacturer Part Number 5300UE 0081000 Packaged Quantity 305
American Wire Gauge 18AWG Application/Usage Control Circuits, Initiating Circuits, Monitor/Detection, Notification Circuits Cable Rating Riser Conductor Count 2 Conductor Material Bare Copper Fiber Category OM2 Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 1000' Color Gray Insulation Material PE, PO, PP Package Type Reel
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
