Belden 5300UG 008U500 Security & Sound Cable, 2-Conductor 18 AWG, CM Rated, PVC Jacket, Gray
5300UG 008U500 | 7B-5300UG00M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

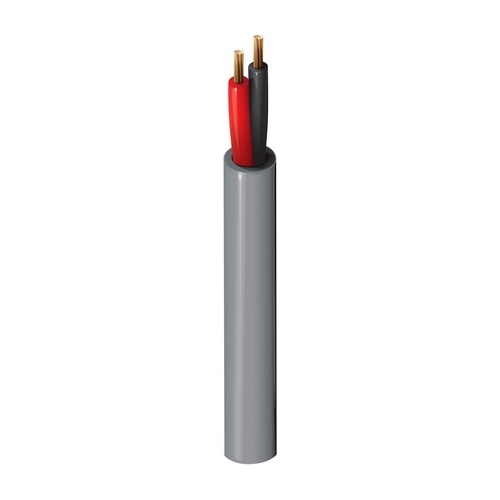

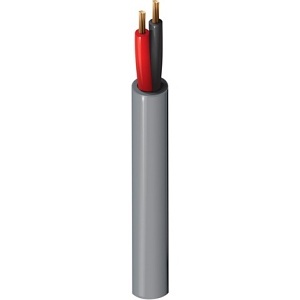

Security and Sound Cable, Rated-CM, 2-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket.
Main Features
- 2-conductor 18 AWG stranded bare copper conductors
- Polyolefin insulation
- PVC jacket
- CM rated security and sound cable
- Gray color
General Information
Name: Belden 5300UG 008U500 Security & Sound Cable, 2-Conductor 18 AWG, CM Rated, PVC Jacket, Gray
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825159193
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-5300UG00M Application/Usage Alarm, Intercom/PA, Security System, Single Line Telephone Brand Name Belden Country of Origin MX Manufacturer Part Number 5300UG 008U500 Packaged Quantity 152
American Wire Gauge 18AWG Conductor Count 2 Conductor Material Bare Copper Impedance 50Ohm Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 500.00' Color Gray Insulation Material PE, PO, PP Jacket Material PVC
Length 500.00'
Indoor/Outdoor Indoor, Outdoor
