Belden 5302F1 0021000 4-Conductor 18 AWG Security and Sound Cable, Water-Blocked, Foil Shield, PVC Jacket, CMG-FPL-PLTC, 1000', Red
5302F1 0021000
|7B-5302F1210
Shop All Belden
Belden 5302F1 0021000 4-Conductor 18 AWG Security and Sound Cable, Water-Blocked, Foil Shield, PVC Jacket, CMG-FPL-PLTC, 1000', Red
5302F1 0021000 | 7B-5302F1210
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

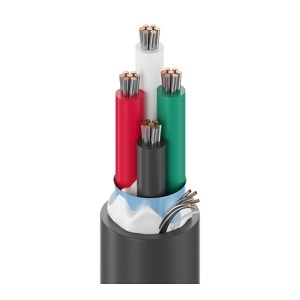

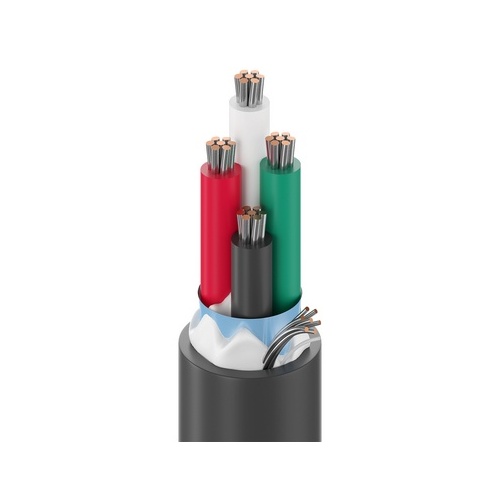

Security & Sound Cable, Rated-CMG-FPL-PLTC, 4-18 AWG stranded tinned copper conductors with PVC insulation, waterblocking tape, Beldfoil shield and PVC jacket.
Specifications
ADI Part Number 7B-5302F1210 Brand Name Belden Manufacturer Part Number 5302F1 0021000 Packaged Quantity 305
American Wire Gauge 18AWG Application/Usage Audio/Speaker, Below-Grade Duct, Intercom/PA, Noisy & Wet Location, Power-Limited Controls, Security System Conductor Count 4 Conductor Material Tin-plated Copper Fiber Category OM3 Jacket Material PVC Number of Conductors 4 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) -30-105°C
Cable Length 1000' Color Red Insulation Material PVC Package Type Reel
Installation Type Burial
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor, Outdoor
