Belden 5302UE 008500 Security & Sound Cable, 4-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
5302UE 008500
|7B-5302UE00L
Shop All Belden
Belden 5302UE 008500 Security & Sound Cable, 4-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
5302UE 008500 | 7B-5302UE00L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

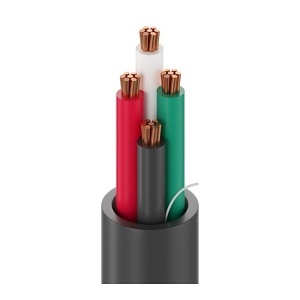

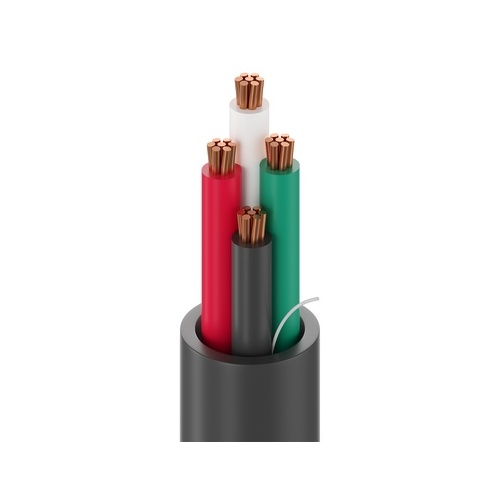

Security and Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord.
Main Features
- 4-Conductor 18 AWG stranded bare copper conductors
- Unshielded cable design
- Riser CMR rated for vertical wall installation
- Polyolefin insulation on conductors
- PVC jacket with ripcord for easy stripping
- Gray color jacket for identification
General Information
Name: Belden 5302UE 008500 Security & Sound Cable, 4-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825336860
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-5302UE00L Application/Usage Audio/Speaker, Intercom/PA, Power-Limited Controls, Security System Brand Name Belden Country of Origin MX Manufacturer Part Number 5302UE 008500 Packaged Quantity 152
American Wire Gauge 18AWG Conductor Count 4 Conductor Material Bare Copper Impedance 75.00O Number of Conductors 4 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 500.00' Color Gray Insulation Material PE, PO, PP Jacket Material PVC
Length 500.00'
Indoor/Outdoor Indoor, Outdoor
