Belden 5303UE 0081000 Security & Sound Cable, 5-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
5303UE 0081000
|7B-5303UE008
Shop All Belden
Belden 5303UE 0081000 Security & Sound Cable, 5-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
5303UE 0081000 | 7B-5303UE008
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

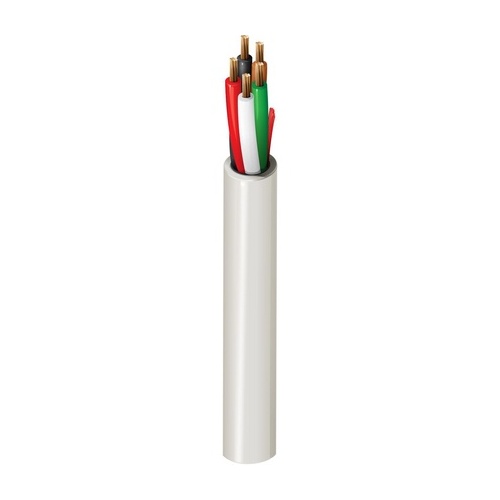

Security and Sound Cable, Riser-CMR, 5-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord.
Main Features
- 5-conductor 18 AWG stranded bare copper conductors
- Unshielded configuration
- CMR riser rated for vertical spaces
- PVC jacket with ripcord for easy removal
- Polyolefin insulation on conductors
- Gray color jacket
General Information
Name: Belden 5303UE 0081000 Security & Sound Cable, 5-Conductor 18 AWG, Unshielded, Riser CMR Rated, PVC Jacket, Gray
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825336877
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-5303UE008 Application/Usage Audio/Speaker, Intercom/PA, Power-Limited Controls, Security System Brand Name Belden Country of Origin MX Manufacturer Part Number 5303UE 0081000 Packaged Quantity 10, 305
American Wire Gauge 18AWG Conductor Count 5 Conductor Material Bare Copper Impedance 75.00O Number of Conductors 5 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 1000.00' Color Gray Insulation Material PE, PO, PP Jacket Material PVC
Length 1000.00'
Indoor/Outdoor Outdoor
