Belden 5340F1 0101000 Security & Sound Cable, 2-Conductor 18 AWG, Shielded, CMG-FPL-PLTC Rated, Water-Blocked, Black
5340F1 0101000
|7B-5340100BK
Shop All Belden
Belden 5340F1 0101000 Security & Sound Cable, 2-Conductor 18 AWG, Shielded, CMG-FPL-PLTC Rated, Water-Blocked, Black
5340F1 0101000 | 7B-5340100BK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

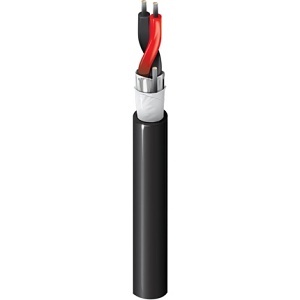

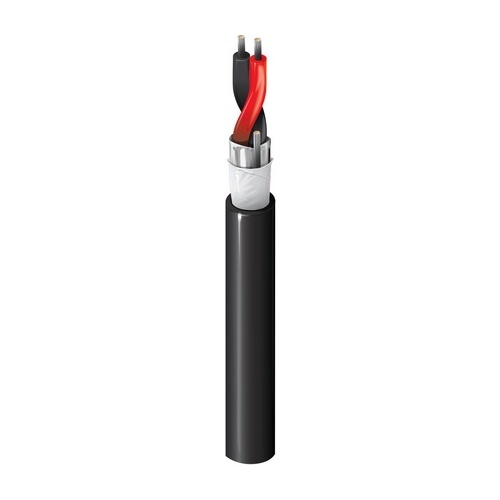

Security and Sound Cable, Rated-CMG-FPL-PLTC- 1-18 AWG stranded tinned copper pair with PVC insulation, Beldfoil shield, Waterblocking tape, PVC jacket.
Main Features
- 2-Conductor 18 AWG stranded tinned copper pair
- CMG-FPL-PLTC rating for security and sound cable
- Shielded with Beldfoil shield
- Water-blocked with waterblocking tape
- PVC insulation on conductors
- Black PVC jacket
General Information
Name: Belden 5340F1 0101000 Security & Sound Cable, 2-Conductor 18 AWG, Shielded, CMG-FPL-PLTC Rated, Water-Blocked, Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825161134
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-5340100BK Brand Name Belden Manufacturer Part Number 5340F1 0101000 Packaged Quantity 305
American Wire Gauge 18AWG Application/Usage Audio/Speaker, Below-Grade Duct, Intercom/PA, Noisy & Wet Location, Power-Limited Controls, Security System Conductor Count 2 Conductor Material Tin-plated Copper Impedance 50 ohms Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) -30-105°C
Cable Length 1000' Color Black Insulation Material PVC
Country of Origin MX Indoor/Outdoor Indoor, Outdoor
