Belden 5504FE 008U500 Security & Sound Cable, 6-Conductor 22 AWG, Shielded, Riser CMR Rated, PVC Jacket, Gray
5504FE 008U500
|7B-5504FE08U
Shop All Belden
Belden 5504FE 008U500 Security & Sound Cable, 6-Conductor 22 AWG, Shielded, Riser CMR Rated, PVC Jacket, Gray
5504FE 008U500 | 7B-5504FE08U
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

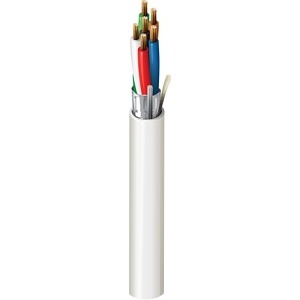

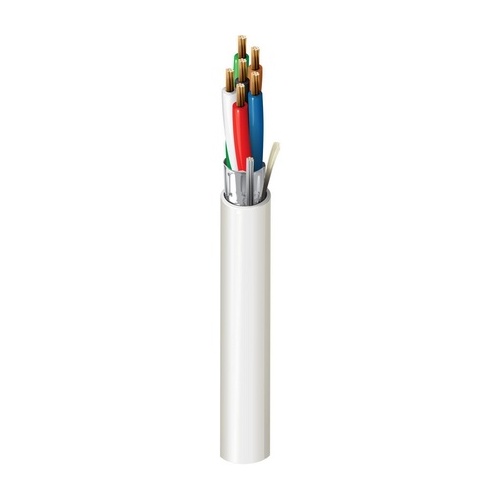

Security and Sound Cable, Riser-CMR, 6-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil shield and PVC jacket with ripcord.
Specifications
ADI Part Number 7B-5504FE08U Brand Name Belden Manufacturer Part Number 5504FE 008U500 Packaged Quantity 152
American Wire Gauge 22AWG Application/Usage Audio/Speaker, Intercom/PA, Noisy Environment, Power-Limited Controls, Security System Cable Rating Riser Cable Type Category 5e Conductor Count 6 Conductor Material Bare Copper Jacket Material PVC Number of Conductors 6 Number of Pairs 4 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 500' Color Gray Insulation Material PE, PO, PP
Country of Origin MX Indoor/Outdoor Indoor
