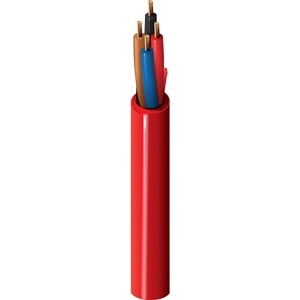

Belden 6102UL 0021000 16 AWG 2-Conductor Unshielded Cable, Plenum CMP, 1000' Reel, Red
6102UL 0021000
|7B-6102UL0021000
Shop All Belden
Belden 6102UL 0021000 16 AWG 2-Conductor Unshielded Cable, Plenum CMP, 1000' Reel, Red
6102UL 0021000 | 7B-6102UL0021000
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Fire Alarm Cable, Plenum-FPLP, 4-14 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.
Main Features
- Plenum-rated (FPLP)
- Flamarrest insulation and jacket
- Integrated ripcord for easy stripping
- 19x26 stranding
- 300V UL voltage rating
- NFPA 262 (UL910) flammability rating
- 2.6 in (66 mm) minimum bend radius
- 192 lbs (87.1 kg) maximum pull tension
- Nominal Conductor DCR- 2.67 Ohm/1000ft
- Nominal Capacitance Cond-to-Cond- 37 pF/ft
General Information
Name: Belden 6102UL 0021000 16 AWG 2-Conductor Unshielded Cable, Plenum CMP, 1000' Reel, Red
Category: Belden, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-6102UL0021000 Brand Name Belden Manufacturer Part Number 6102UL 0021000
American Wire Gauge 14AWG Conductor Count 4 Conductor Material Bare Copper Jacket Material PVC Shielding No
Operating Temperature (T-T) 0-75°C
Color Red Insulation Material PVC-LS
Indoor/Outdoor Indoor
