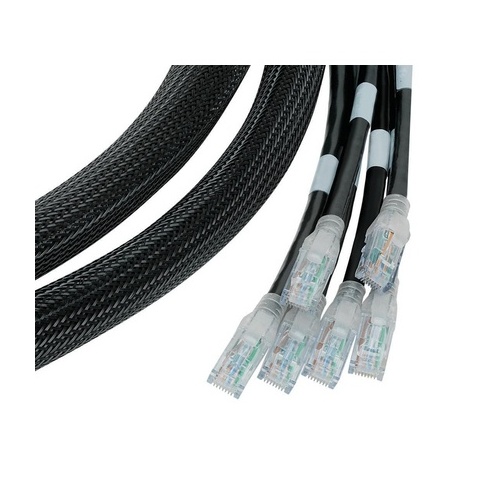

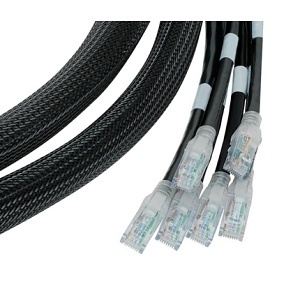

Belden C601109023A08 8-Position Harness B3600 Cable, CMR, 23', White
C601109023A08
|7B-6119238
Shop All Belden
Belden C601109023A08 8-Position Harness B3600 Cable, CMR, 23', White
C601109023A08 | 7B-6119238
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Copper Trunk Assemblies. Ideal for data centers, enterprise networks and other applications where installation speed is important, our Copper Trunk Cable Assemblies are factory terminated and tested to reduce installation time by up to 90%. No termination required! Assemblies are available in various lengths with connectors that meet the needs of your application. Our popular braided leaf design keeps all cables together inside bundles.
Specifications
ADI Part Number 7B-6119238 Brand Name Belden Manufacturer Part Number C601109023A08 Packaged Quantity 1
American Wire Gauge 23AWG Application/Usage 1000BASE-T, IBDN System 3600, ISO Class E, TIA Category 6 Cable Rating Riser Cable Type Category 6 Number of Pairs 4 Shielding No
Maximum Storage Temperature -40-70°C Operating Temperature (T-T) -10-60°C Storage Temperature (T-T) -40-70°C
Cable Length 23' Color White Package Type Box
Current Rating 1.5A Plug/Connector Type RJ-45
Country of Origin MX
