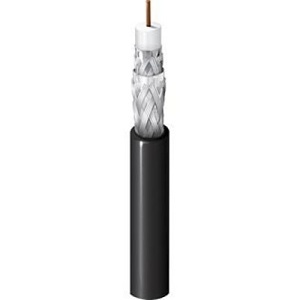

Belden 6339Q8 8771000 RG‑6 Quad‑Shield CCTV Coaxial Cable 18AWG Plenum, Natural
6339Q8 8771000
|7B-6339Q8871
Shop All Belden
Belden 6339Q8 8771000 RG‑6 Quad‑Shield CCTV Coaxial Cable 18AWG Plenum, Natural
6339Q8 8771000 | 7B-6339Q8871
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Suitable for CATV and MATV applications.
Main Features
- 18 AWG solid bare copper conductor
- Foam FEP insulation
- Quad shielding for superior interference rejection
- Flamarrest Low Smoke PVC jacket
- Plenum rated (CMP, CATVP)
- 75 Ohm characteristic impedance
- 83% nominal velocity of propagation
- 76 lbs (34 kg) maximum pull tension
- Indoor - Plenum suitability
- Global availability
General Information
Name: Belden 6339Q8 8771000 RG‑6 Quad‑Shield CCTV Coaxial Cable 18AWG Plenum, Natural
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825176060
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-6339Q8871 Brand Name Belden Manufacturer Part Number 6339Q8 8771000
American Wire Gauge 18AWG Cable Rating Plenum Conductor Count 1 Conductor Material Bare Copper Shielding Yes
Operating Temperature (T-T) -20-75°C
Color Clear Insulation Material FEP Jacket Material PVC
Indoor/Outdoor Indoor
