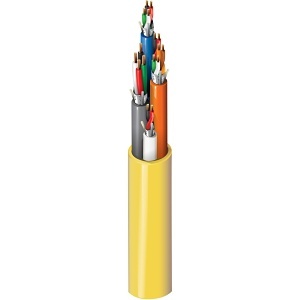

Belden 638AFJ 0041000 Access Control Cable, Plenum-CMP, Stranded BC with Flamarrest Insulation Conductors, Overall Beldfoil Shield and Flamarrest Jackets, Overall Flamarrest Jacket, Yellow
638AFJ 0041000
|7B-638AFJ00F
Shop All Belden
Belden 638AFJ 0041000 Access Control Cable, Plenum-CMP, Stranded BC with Flamarrest Insulation Conductors, Overall Beldfoil Shield and Flamarrest Jackets, Overall Flamarrest Jacket, Yellow
638AFJ 0041000 | 7B-638AFJ00F
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Access Control Cable, Plenum-CMP, 3-18 AWG pairs, 4-16 AWG conductors, 4-18 AWG conductors, 2-18 AWG conductors, All conductors stranded bare copper with Flamarrest insulation, Each cable has overall Beldfoil shield and Flamarrest jackets, Overall Flamarrest jacket.
Main Features
- 3-18 AWG pairs, 4-16 AWG conductors, 4-18 AWG conductors, 2-18 AWG conductors
- Stranded bare copper conductors with Flamarrest insulation
- Overall Beldfoil shield for electromagnetic protection
- Plenum-CMP rated for plenums and air handling spaces
- Overall Flamarrest jackets for enhanced fire resistance
- Yellow outer jacket for visibility
General Information
Name: Belden 638AFJ 0041000 Access Control Cable, Plenum-CMP, Stranded BC with Flamarrest Insulation Conductors, Overall Beldfoil Shield and Flamarrest Jackets, Overall Flamarrest Jacket, Yellow
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825353119
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number 7B-638AFJ00F Brand Name Belden Manufacturer Part Number 638AFJ 0041000
American Wire Gauge 18AWG Application/Usage Access Control, Power Limited Controls, Security System Cable Rating Plenum Conductor Count 16 Conductor Material Bare Copper Jacket Material PVC Material PVC Number of Conductors 16 Number of Pairs 3 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) 0-75°C
Color Yellow Insulation Material PVC-LS Package Type Reel
Length 1000'
Indoor/Outdoor Indoor
