Belden 6502FE 877U1000 4-Conductor 22AWG Plenum-CMP, Stranded Bare Copper Security & Alarm Cable, Flamarrest, Beldfoil, Natural, Crate Reel Put-up, 1000'
6502FE 877U1000
|7B-6502FE870
Shop All Belden
Belden 6502FE 877U1000 4-Conductor 22AWG Plenum-CMP, Stranded Bare Copper Security & Alarm Cable, Flamarrest, Beldfoil, Natural, Crate Reel Put-up, 1000'
6502FE 877U1000 | 7B-6502FE870
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

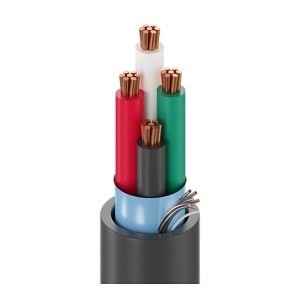

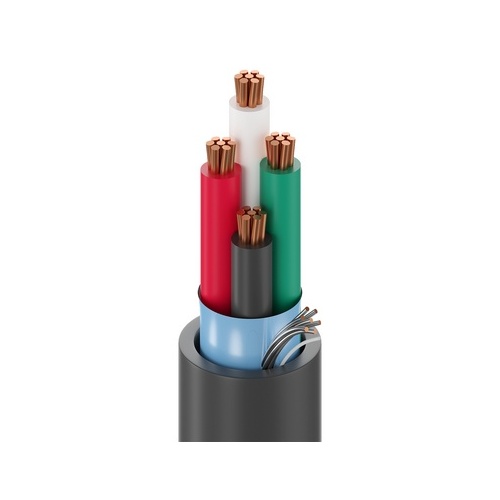

Security & Alarm Cable, Plenum-CMP, 4-22 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord.
Main Features
- Suitable for Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
- 4 Conductors, 22 AWG, 7x30 Stranding
- Bare Copper
- PVC - Polyvinyl Chloride Insulation
- Tape Outer Shield, Bi-Laminate (Alum Poly)
- PVC - Polyvinyl Chloride Jacket
- 0.147 in (3.73 mm) Nominal Diameter
- 300 V (CMP) UL Voltage Rating
- Environmental Suitable for Indoor - Plenum, Indoor
- CEC / C(UL) Compliance: CMP
General Information
Name: Belden 6502FE 877U1000 4-Conductor 22AWG Plenum-CMP, Stranded Bare Copper Security & Alarm Cable, Flamarrest, Beldfoil, Natural, Crate Reel Put-up, 1000'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825177593
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-6502FE870 Brand Name Belden Manufacturer Part Number 6502FE 877U1000 Packaged Quantity 305
American Wire Gauge 22AWG Application/Usage Audio/Speaker, Intercom/PA, Noisy Environment, Power-Limited Controls, Security System Cable Rating Plenum Conductor Count 4 Conductor Material Bare Copper Jacket Material PVC Number of Conductors 4 Shielding Foil
Operating Temperature (T-T) 0-75°C
Cable Length 1000' Color Clear Insulation Material PVC-LS
Country of Origin MX Indoor/Outdoor Indoor
