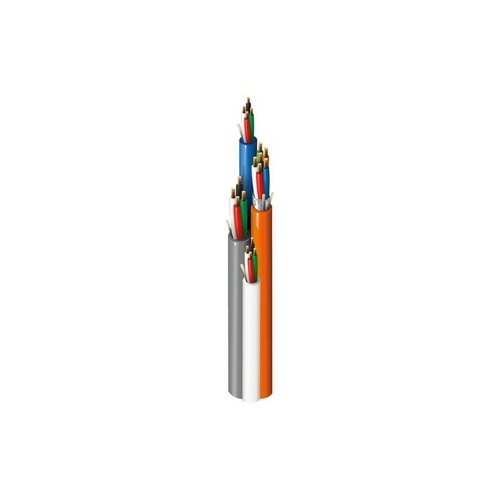

Belden 658GMS 0001000 Plenum Access Control Cable, 22/6 Foil, 22/4, 22/4, 18/4, CMP, Banana Peel, Flamarrest, 1000' (304.8m) Reel, Orange, White, Blue, Gray

Brand: Belden
ADI #:7B-658GMS001 Model #: 658GMS 0001000  Name: Belden 658GMS 0001000 Plenum Access Control Cable, 22/6 Foil, 22/4, 22/4, 18/4, CMP, Banana Peel, Flamarrest, 1000' (304.8m) Reel, Orange, White, Blue, Gray
  • For exceptional quality, upright compatibility and reliability use this control cable
  • Features Composite cable type to better accommodate your precise requirements with maximum productivity
  • Stranded feature for better reliability and ensure maximum productivity
Image of 7B-658GMS001

Product Overview

Discover the Belden 658GMS 0001000 Plenum Access Control Cable, a top-tier solution for your security needs. This cable features a composite build, ensuring optimal performance and reliability. Its stranded design offers convenience and ease of use, making installation a breeze. Supporting Security Access Control Systems, it enhances system reliability and performance. Available in a 1000' reel with a vibrant mix of orange, white, blue, and gray, it's designed for both quality and compatibility. Upgrade your setup with Belden's trusted engineering. Don't wait, secure your system with Belden today!

General Information

Name : Belden 658GMS 0001000 Plenum Access Control Cable, 22/6 Foil, 22/4, 22/4, 18/4, CMP, Banana Peel, Flamarrest, 1000' (304.8m) Reel, Orange, White, Blue, Gray , Belden
Category : Multiconductor Cables
UPC Code : 999999537058

Specifications

General Information

ADI Part Number : 7B-658GMS001
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 658GMS 0001000
Product Line : Banana Peel
Product Name : Access Control, 18c (#22-6c Foil, #22-4c, #22-4c, #18-4c), CMP
Product Type : Control Cable

Technical Information

American Wire Gauge : 22AWG
Cable Rating : Plenum
Device Supported : Card Reader, Door Contact, Security Access Control System
Shielding : Yes

Physical Characteristics

Cable Length : 1000'
Cable Length (mm) : 304800
Color : Blue, Gray, Orange, White
Insulation Material : LS PVC, PVC
Product Material : Bare Copper

Miscellaneous

Environmental Certification : China RoHS 2, EU WEEE, RoHS 2
Environmentally Friendly : Yes
Features : Stranded
