Product Overview

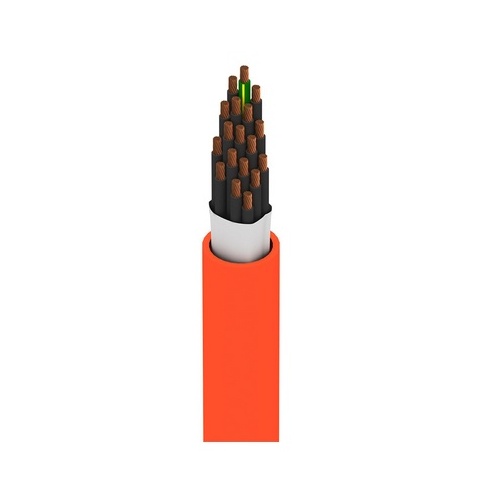

MachFlex for High Flex, 17+1G Conductor 20AWG (74x38) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC.
Main Features
- High Flexibility with MachFlex Design
- 17+1G Conductor 20AWG for Robust Performance
- Bare Copper (74x38) for Superior Conductivity
- Durable PVC Insulation
- Protective TPE Outer Jacket
- PLTC Rated for Safety
General Information
Name: Belden 7107W0031000 17-20 Ground PVC TPE Cable
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-717W3 Brand Name Belden Manufacturer Part Number 7107W0031000 Product Name MachFlex, 17+1G C 20 Str BC, PVC Ins, TPE Jkt, PLTC Product Type Connector Cable
American Wire Gauge 20AWG Application/Usage Continuous Flex, Robot, Robotics Conductor Count 18 Conductor Material Bare Copper Jacket Material TPE Material Bare Copper Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -40-105°C
Cable Length 1000' Color Orange Insulation Material PVC Package Type Bulk Weight 140lb
Limited Warranty 10-Year
Environmental Certification China RoHS, RoHS 2, UL, WEEE Environmentally Friendly Yes Indoor/Outdoor Outdoor
