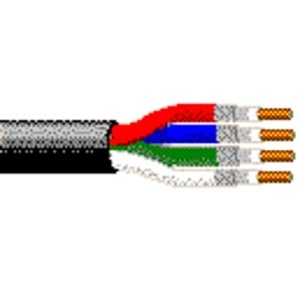

Belden 7788A B591000 VideoFlex Snake Miniature 4‑Coax 23AWG 75 Ohm Cable, 1000' Black
7788A B591000
|7B-7788AB591000
Shop All Belden
Belden 7788A B591000 VideoFlex Snake Miniature 4‑Coax 23AWG 75 Ohm Cable, 1000' Black
7788A B591000 | 7B-7788AB591000
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Digital Coax Snake Cable for UHDTV and HD-SDI applications.
Main Features
- 23AWG solid bare copper conductors
- 95% tinned copper braid coverage
- 75Ohm nominal characteristic impedance
General Information
Name: Belden 7788A B591000 VideoFlex Snake Miniature 4‑Coax 23AWG 75 Ohm Cable, 1000' Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-7788AB591000 Brand Name Belden Manufacturer Part Number 7788A B591000 Packaged Quantity 1000
American Wire Gauge 23AWG Conductor Count 4 Conductor Material Bare Copper Jacket Material PVC (Polyvinyl Chloride) Material PVC Shielding Yes
Operating Temperature (T-T) -35-75°C
Color Black Insulation Material PE (Polyethylene), PO (Polyolefin), PP (Polypropylene) Package Type Reel/Spool
Length 1000'
Limited Warranty 10-Year
Certifications & Standards CA Prop 65, China RoHS II (GB/T 26572-2011), EU CE Mark, EU Directive 2003/11/EC (BFR), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU (RoHS 2 amendment), WEEE Country of Origin US Indoor/Outdoor Indoor, Outdoor
