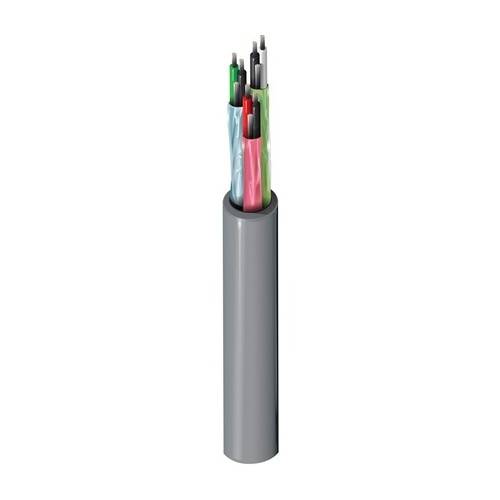

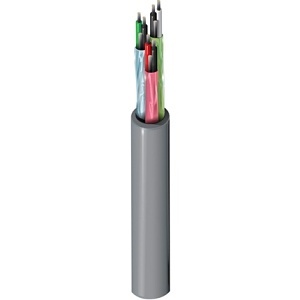

Belden 82777 877U500 22 AWG 3-Pair Shielded Audio/Control Cable, FEP Insulation, Individual Beldfoil Shields, LS-PVC CMP Jacket, 500', Natural
82777 877U500
|7B-827778775
Shop All Belden
Belden 82777 877U500 22 AWG 3-Pair Shielded Audio/Control Cable, FEP Insulation, Individual Beldfoil Shields, LS-PVC CMP Jacket, 500', Natural
82777 877U500 | 7B-827778775
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Audio, Control and Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, twisted pairs individually shielded with Beldfoil (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.
Main Features
- 22 AWG stranded (7x30) tinned copper conductor
- FEP insulation for temperature and chemical resistance
- Three twisted pairs individually shielded with Beldfoil (100% coverage)
- LS-PVC CMP jacket for fire safety and durability
- 500-foot length cable in natural color
- Includes 22 AWG stranded tinned copper drain wire
- Designed for audio, control, and instrument applications
General Information
Name: Belden 82777 877U500 22 AWG 3-Pair Shielded Audio/Control Cable, FEP Insulation, Individual Beldfoil Shields, LS-PVC CMP Jacket, 500', Natural
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825197812
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-827778775 Brand Name Belden Manufacturer Part Number 82777 877U500 Packaged Quantity 152
American Wire Gauge 22AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring, 0-10V, indoor plenum applications; low voltage analog signals (4-20ma Cable Rating Plenum Conductor Count 6 Conductor Material Tin-plated Copper Impedance 75 ohms Jacket Material PVC Number of Conductors 6 Number of Pairs 3 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) 0-90°C
Cable Length 500' Color Clear Insulation Material FEP
Country of Origin US
